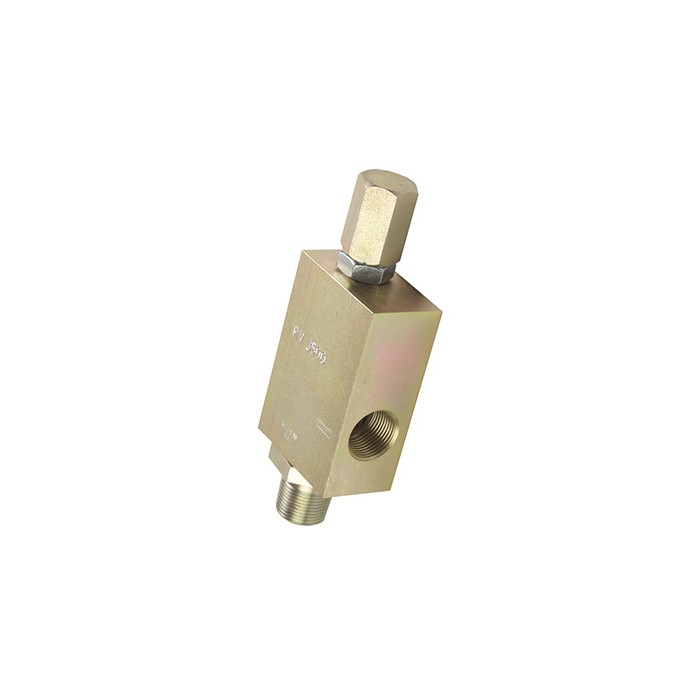

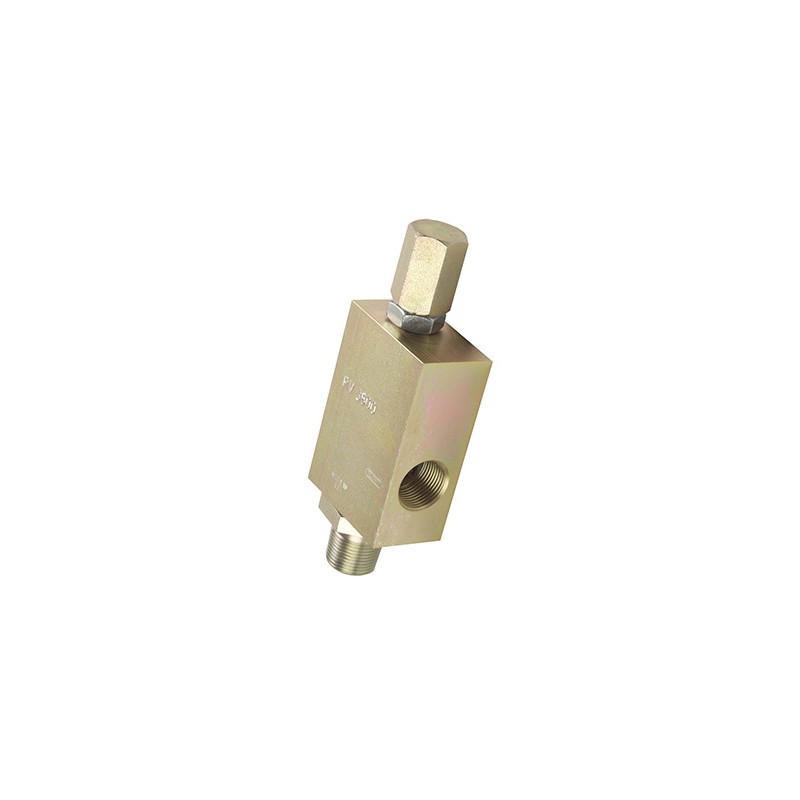

Relief Valves

Ports: ¾" NPT: Inlet - Male; Outlet - Female

Cv = 2.0

For tamper proof option, add "-TP" to the part number

Product Details
Downloads

Relief valves are used in hydraulic circuits to protect the downstream circuit from overpressurization by a pump. They are factory set for a specified cracking pressure (i.e. set pressure), and are adjustable or available with tamper proof wire to inhibit field readjustment. When inlet pressure is reduced to within 25% of set pressure, the relief valve reseals.

Relief Valves are manufactured with zinc plated carbon steel bodies with hardened stainless steel sealing components.

Model #	Part #	Working Pressure	Set Pressure	Repair Kit Part#
RV-1250	40-1864	1000 psi	1250 psi	40-1708
RV-1750	40-1647	1500 psi	1750 psi	40-1708
RV-2250	40-1865	2000 psi	2250 psi	40-1707
RV-3300	40-1646	3000 psi	3300 psi	40-1707
RV-5500	40-1648	5000 psi	5500 psi	40-1707
