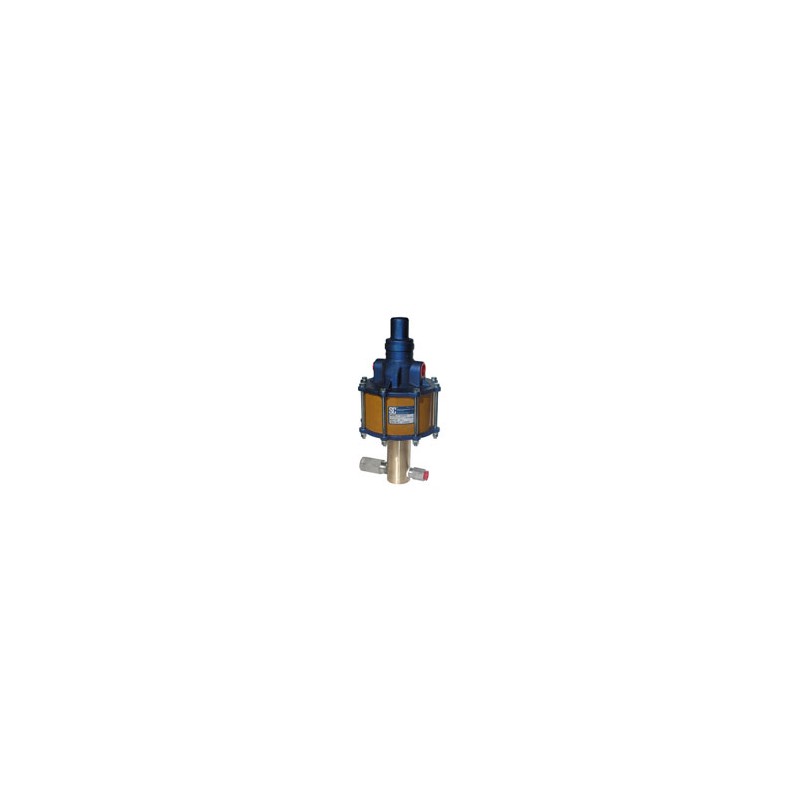

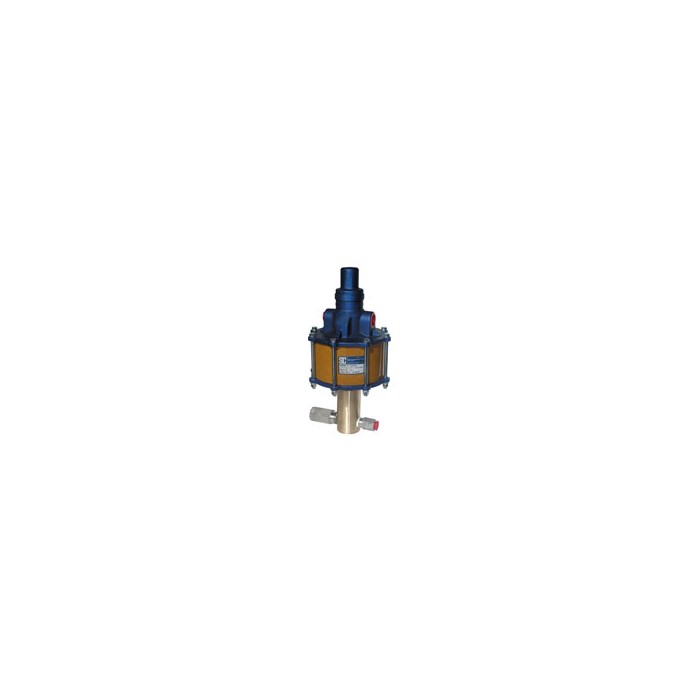

10-6 & D6 Series Liquid pump
HIGH OUTPUT CAPACITY
GUARANTEED PERFORMANCE
MULTIPLE OUTPUT CAPACITIES
SIMPLE OPERATION PRINCIPLE
DESIGNED FOR EASY MAINTENANCE
WIDE RANGE OF OPERATING PRESSURES
10-6 & D6 Series pumps have a 7" diameter air piston and a 2 �" stroke. Thirteen models are available with pressures up to 65,000 psig.When operating from 0 to rated hydraulic pressure, air consumption will be approximately 56 scfm of free air at 100 psi output. At lower air pressures and higher hydraulic pressures air consumption will be reduced proportionately to flow rates indicated.Mounting may be in any position, vertical preferred. When mounting in an inverted position, a drain cock should be provided to drain off any liquid that may accumulate in the pilot valve air chamber.The D6 Series "Dry Lube" pump is identical to the 10-6 Series except it is pre-lubricated and therefore does not require an air line lubricator. The part number distinguishes it from the 10-6 Series by the D6 prefix and using the actual ratio rather than a numerical code in the model suffix.
Application
Staking
Piercing
Blanking
Pressing
Clamping
Metal forming
Static and burst testing
Hydraulic Press operation
Flow testing requiring relatively low flows at high pressures
Applications requiring extreme intermittent pressure and velocity commonly associated with water blasting and jetting.
