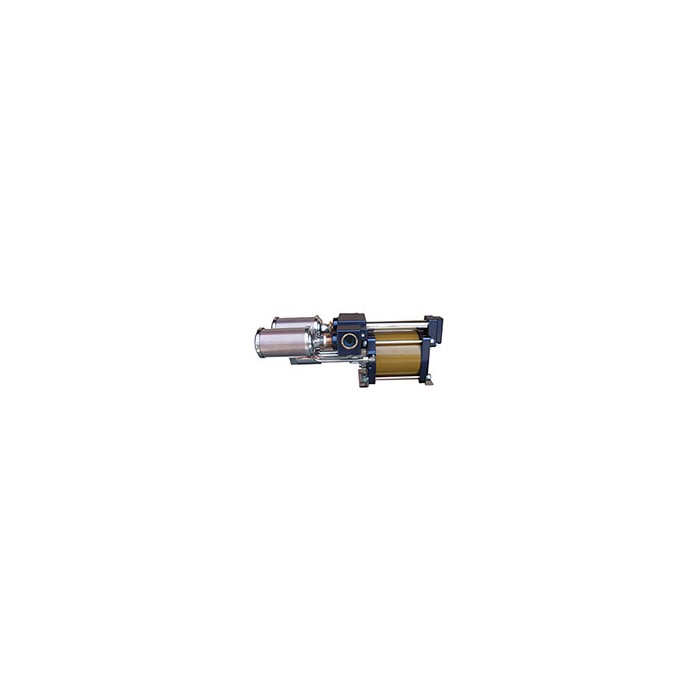

L6 Series Liquid Pump
SC

L6 Series Liquid Pump

HIGH FLOW CAPACITY

DOUBLE ACTING, SINGLE STAGE

COMPATIBLE WITH MOST FLUIDS

STAINLESS STEEL WETTED PARTS

AIR OPERATED - NO ELECTRICITY NEEDED

THREE DIFFERENT PRESSURE RATIOS UP TO 11,200 PSI

DIMENSIONALLY INTERCHANGEABLE WITH MOST COMPETITIVE MODEL PUMPS

The SC L6 Series pump has a 6" diameter air cylinder with stainless steel wetted parts. This double acting pump is capable of hydraulic pressures up to 11,200-psi and is available in three pressure ratios: 40:1, 60:1 and 100:1.

This pump is ideal for high flow at relatively high pressure applications. Nominal outlet flow ranges between 2-gpm to 1-gpm depending on outlet pressure and pump model. Maximum air consumption is approximately 200-SCFM at free flow (zero output pressure).

It is designed to operate with air drive pressures between 15-psi and 100-psi under normal conditions and is dimensionally interchangeable with competitive model pumps. Typical applications include choke control operation, hydrostatic testing and press applications.

Application

  • Press applications

  • Hydrostatic testing

  • High flow power units

  • Sub-sea valve controls

  • Choke control operations
