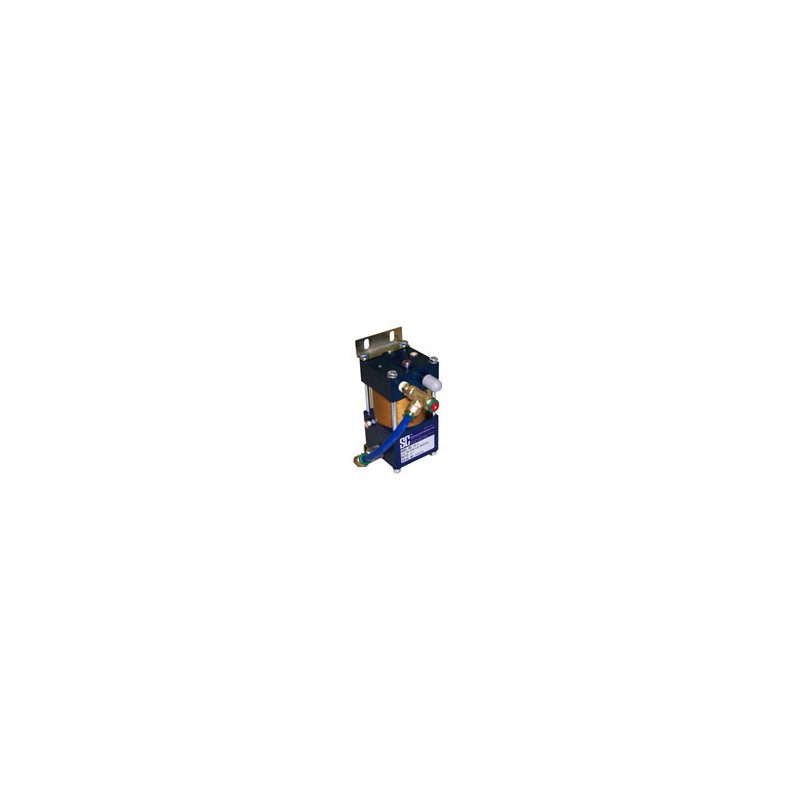

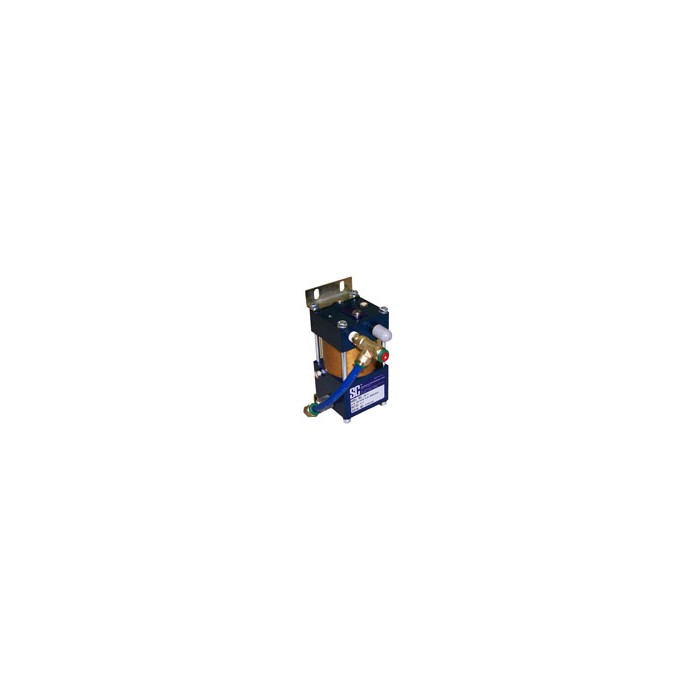

AB Series Air Booster
SC

AB Series Air Booster

ECONOMICAL

REQUIRES NO LUBRICATION

COMPACT AND LIGHTWEIGHT

SINGLE ACTING, SINGLE STAGE IDEAL FOR OEM APPLICATIONS

PRESSURES UP TO 680-PSI (AB-7)

AIR OPERATED � DOES NOT REQUIRE ELECTRICITY

The AB Series air booster is a compact, single-acting unit available in 1.7:1, 3.7:1 or 7:1 ratios. This booster is an inexpensive alternative for applications requiring 100-680 psi static holding pressures when low flow is acceptable. The air drive and supply are the same so no extra plumbing is required and no electrical connections are needed. The compact and lightweight size, and ability to operate in any position, has broad appeal for in-plant, mobile machinery, and OEM applications. The units are pre-lubricated therefore air line lubrication is not required.

Application

  • Engine air starter systems

  • Top off high pressure tires

  • Release spring actuated brakes

  • Increase maximum torque on small air tools

  • Top off and maintain pressure in die cushions

  • Increase marginal air pressure to valve actuators

  • Extra force for small air clamps, roll tensioners, assembly machines and air presses

SC Air Booster Series

Download (682.78k)
