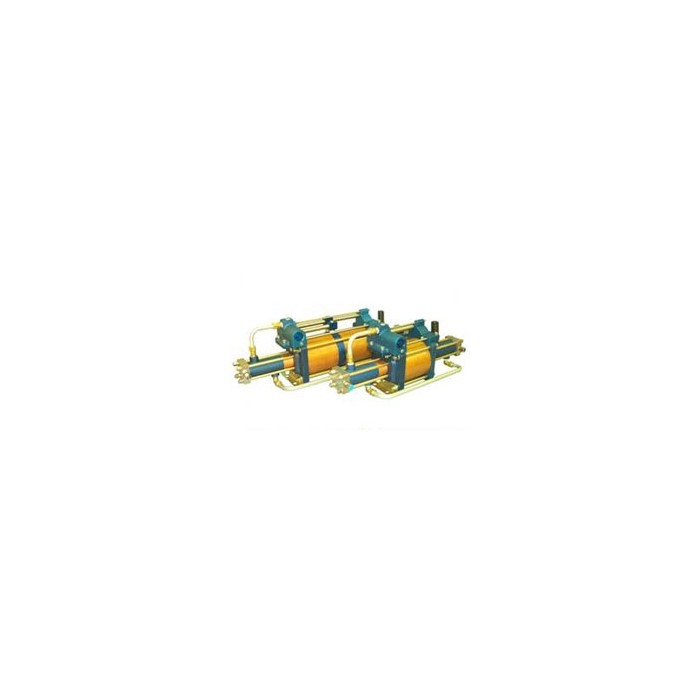

GBD Series Booster
SC

GBD Series Booster

REQUIRES NO LUBRICATION

HIGH FLOW, MEDIUM PRESSURE

REMOTE CONTROL CAPABILITIES

OIL-FREE HIGH PRESSURE SECTION NOMINAL PRESSURES UP TO 12,500-PSI

AIR OPERATED � DOES NOT REQUIRE ELECTRICITY

This series of boosters doubles the volume of output gas per cycle and is a good choice for moving relatively high volumes at pressures up to 20,000 psig. Supply pressure is added to the maximum outlet pressure.

The GBD-5 gas booster is a modified version of our popular ABD air booster. It is used to boost gas pressures up to 1,500 psig. The booster is able to move large volumes of gas efficiently when lower pressures are suitable.

Application

  • LASER CUTTING

  • LEAK DETECTION

  • PRESSURE TESTING VESSELS

  • LOW PRESSURE GAS RECOVERY

  • CHARGING OF NITROGEN BOTTLES

  • GAS ASSISTED INJECTION MOLDING

  • AIRCRAFT SLIDE CHUTE GAS STORAGE

  • CHARGING OF NITROGEN ACCUMULATORS

  • TRANSFER OF SF6 FOR ARC SUPPRESSION

  • TRANSFER OF SF6 FOR CIRCUIT BREAKER INSULATION

  • BOOSTING PRESSURE FROM NITROGEN GENERATORS

SC Gas Booster Series
