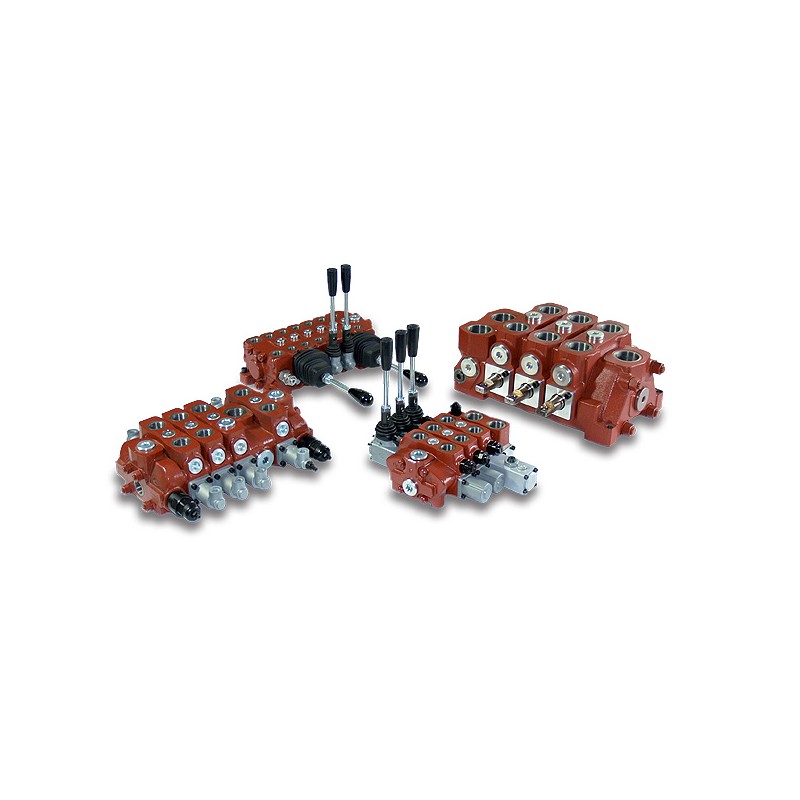

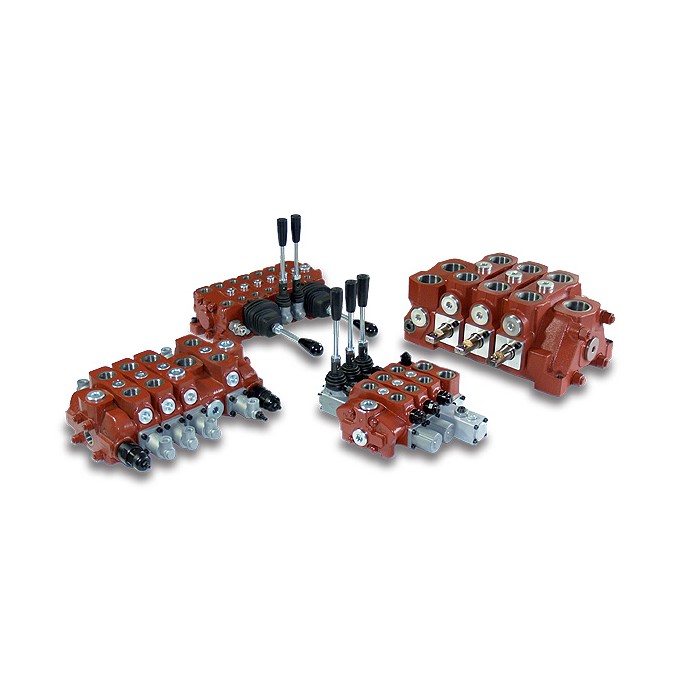

Sections modularity; parallel, series and tandem circuit possibility; port service valve prearrangement; adjustable regulating flow and pressure intermediate sections; these features let Walvoil sectional valves offer the right flexibility in a high technology system.
Simple, compact and heavy duty designed, these valves are used when dimensions, weight and price are extremely important. Walvoil monoblock valves have been successfully used in fields such as agriculture, earth moving machines, lifting equipments, aerial platforms and truck articuled boom cranes.
Port size: 1/4" Cv = .95; Rated Flow = 10 gpm Working Pressures available: 3000 and 6000 psi
Port size: 1/2" Cv = 3.2 Rated Flow = 30 gpm Working Pressures available: 3000 and 6000 psi
Port size: 1" Standard: Cv = 9.2 Rated Flow = 75 gpm Dual Pressure: Cv = 3.2 Rated Flow = 30 gpm Spring Center: Operating pressure 1500 psi Working Pressures available: 3000 & 6000 psi
Port size: 1-1/2" SV-150: Cv = 21 Rated Flow = 180 gpm SV-150DP: Cv = 10 Rated Flow = 90 gpm Working Pressures available: 3000 & 5000 psi
