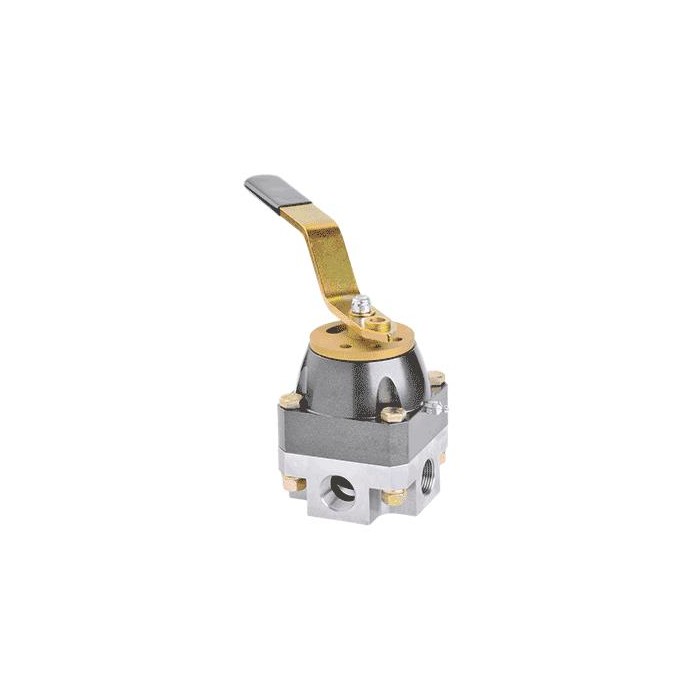

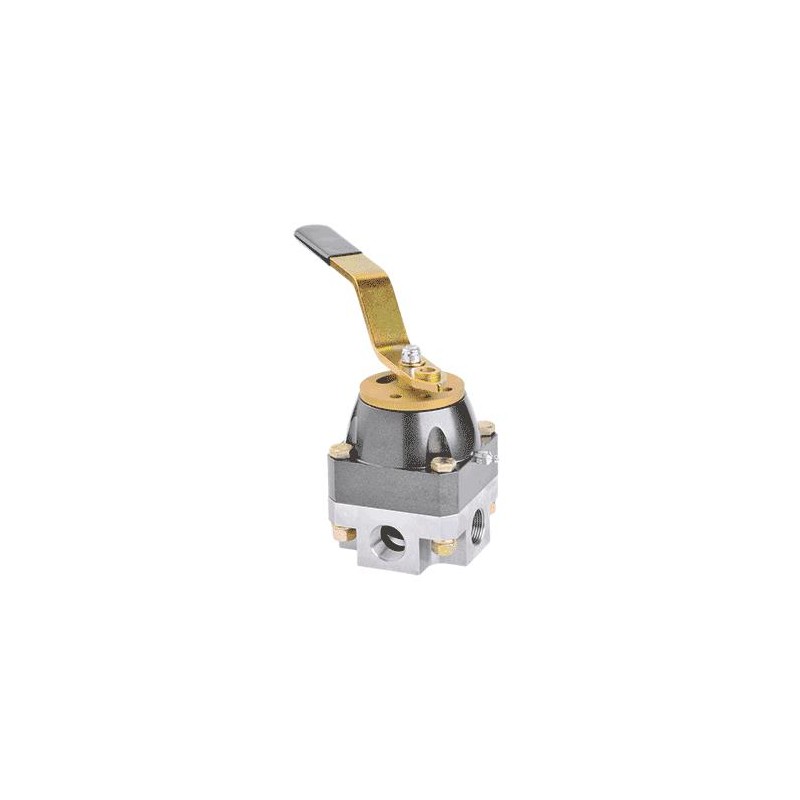

PacSealSV-100 Directional Control Valve
SV-100 Directional Control Valve
Port size: 1"
Standard: Cv = 9.2 Rated Flow = 75 gpm
Dual Pressure: Cv = 3.2 Rated Flow = 30 gpm
Spring Center: Operating pressure 1500 psi
Working Pressures available: 3000 & 6000 psi
Standard rotor configurations allow for interflow when shifting to be drained to tank through the constantly opened return port. The all blocked rotor requires an additional case drain port on the housing.
- ShearFlo® sealing technology ensures high cycle life for critical service applications
even in contaminated fluids.
- Hardened stainless steel sealing elements are lapped and polished to exacting
standards of finish and flatness which produces a leak proof, contaminant resistant
metal-to-metal seal.
- The sealing elements are spring preloaded and pressure energized which maintains
contact between the two sealing surfaces causing continuous lapping during use which
eliminates small scratches.
SV-100 Directional Control Valve with Sensor Ports:
1/4" NPT ports connecting the cylinder ports to pressure sensors or gauges. The typical application is to run these lines to pressure sensors in a control panel, resulting in considerable savings in labor and materials.
