PacSealSV-200 Directional Control Valve
Sold
PacSeal

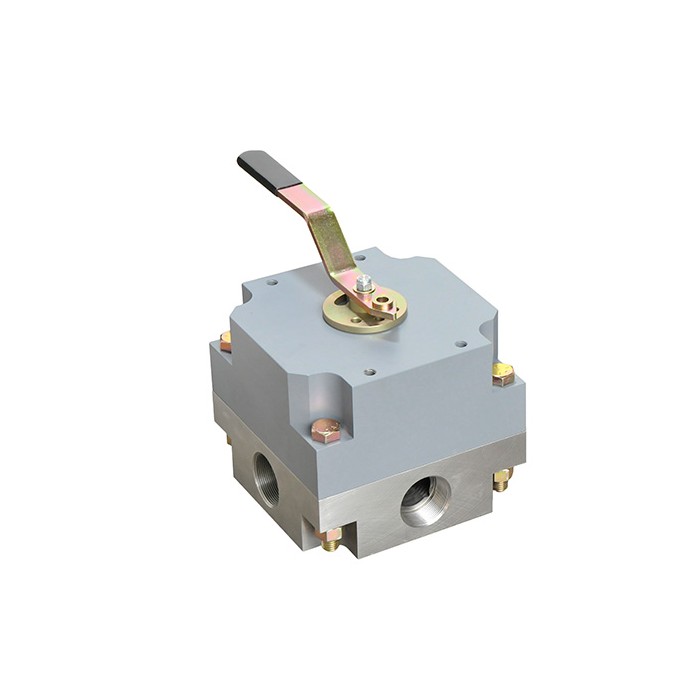

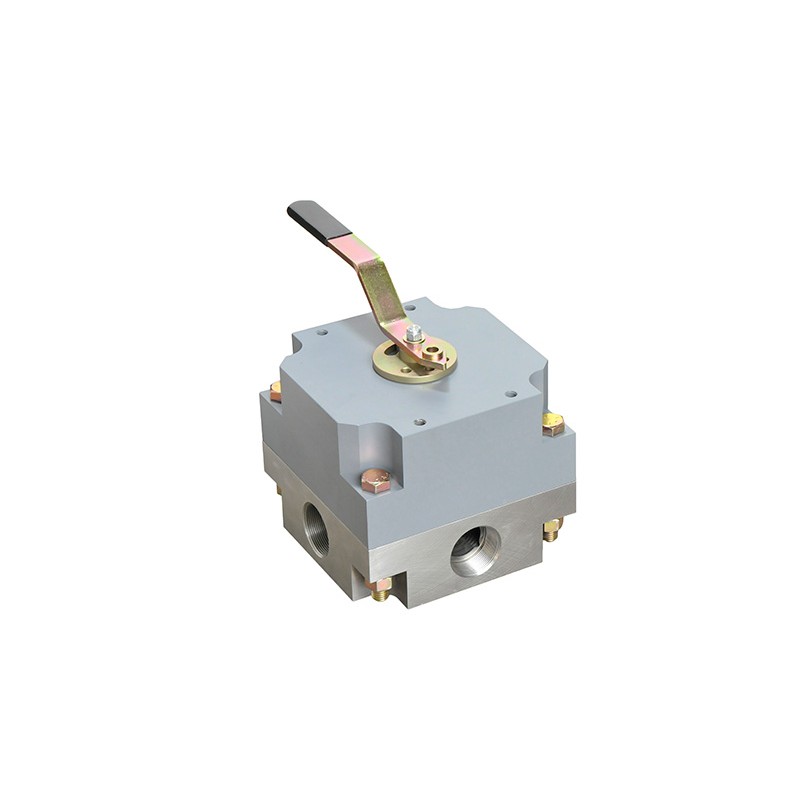

SV-200 Directional Control Valve
Port size: 2"
Cv = 33
Rated Flow = 300 gpm
Port size: 2"
Cv = 33
Rated Flow = 300 gpm

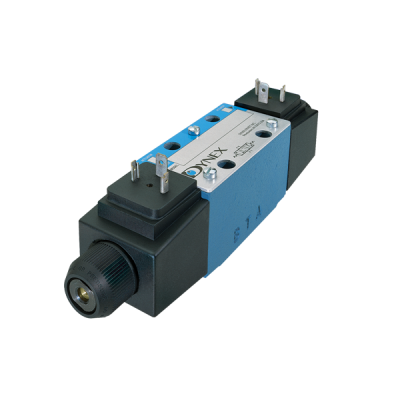

DYNEX D03 PATTERN DIRECTIONAL CONTROL VALVES Nominal Flow: 8 gpm (30 L/min), Max Flow: 15 gpm (57 L/min) Rated Pressure: 5 000 psi (350 bar)

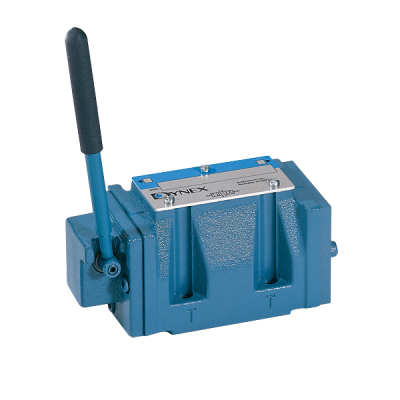

DYNEX D05 – N.F.P.A. D05/ISO 05 PATTERN DIRECTIONAL CONTROL VALVES Nominal Flow: 20 gpm (76 L/min), Max Flow: 40 gpm (152 L/min) Rated Pressure: 5 000 psi (350 bar)

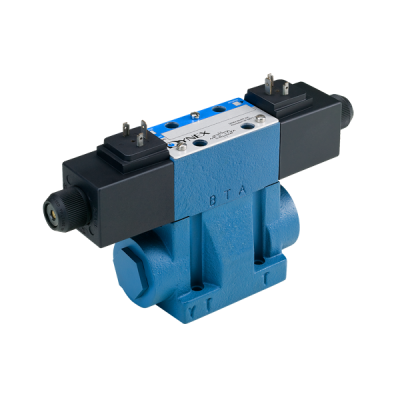

DYNEX D05H – N.F.P.A. D05/ISO 05 PATTERN (With”X” and “Y” ports for external pilot and drain) DIRECTIONAL CONTROL VALVES Nominal Flow: 30 gpm (114 L/min), Max Flow: 40 gpm (151 L/min) Rated Pressure: 5 000 psi (350 bar)

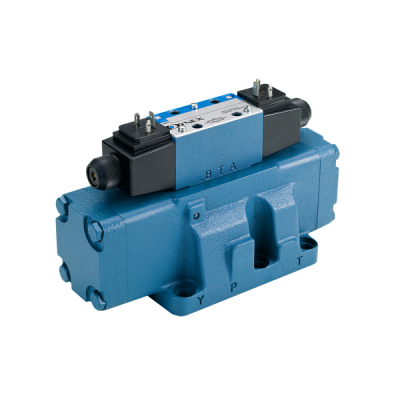

DYNEX D08 – N.F.P.A. D08/ISO 08 PATTERN DIRECTIONAL CONTROL VALVES Nominal Flow: 40 gpm (151 L/min), Max Flow: 90 gpm (341 L/min) Rated Pressure: 5 000 psi (350 bar)

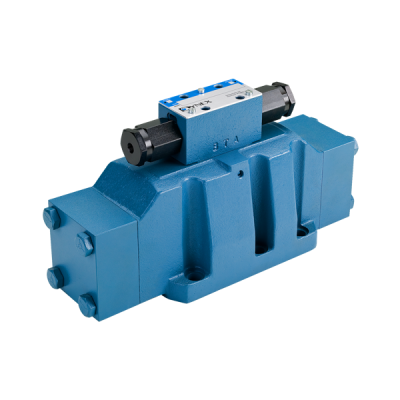

DYNEX D08H – N.F.P.A. D08/ISO 08 PATTERN DIRECTIONAL CONTROL VALVES Nominal Flow: 20 gpm (76 L/min), Max Flow: 40 gpm (152 L/min) Rated Pressure: 5 000 psi (350 bar)
DYNEX HP03 (Special High Pressure Pattern) DIRECTIONAL CONTROL VALVES Nominal Flow: 5 gpm (19 L/min), Max Flow: 15 gpm (57 L/min) Rated Pressure: 10 000 psi (700 bar)

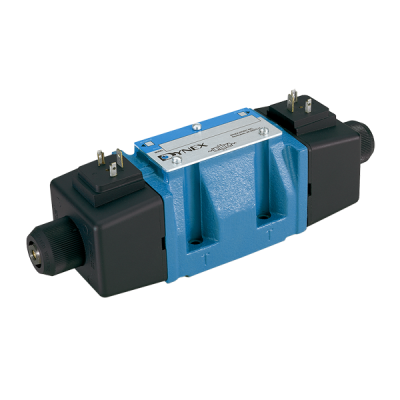

DYNEX HP05 – N.F.P.A. (Special High Pressure Pattern) DIRECTIONAL CONTROL VALVES Nominal Flow: 5 gpm (19 L/min), Max Flow: 25 gpm (95 L/min) Rated Pressure: 8 000 psi (560 bar)

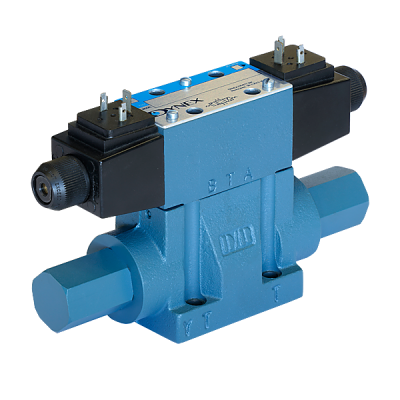

DYNEX HP05H – N.F.P.A. (Special High Pressure Pattern) DIRECTIONAL CONTROL VALVES Nominal Flow: 30 gpm (114 L/min), Max Flow: 40 gpm (151 L/min) Rated Pressure: 8 500 psi (586 bar)

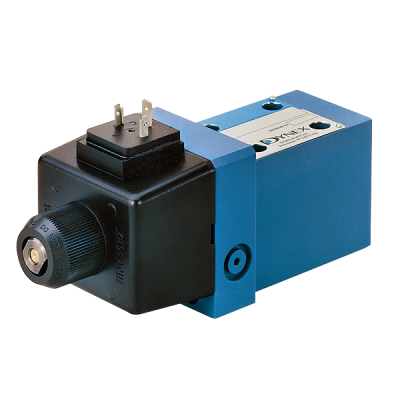

DYNEX VST SEATED VALVES – (Special HP03 Pattern) DIRECTIONAL CONTROL VALVES

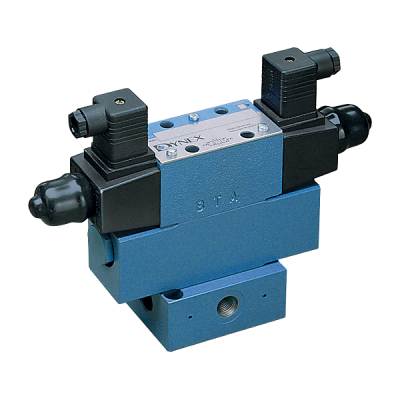

VSW HIGH PRESSURE ACCESSORY SANDWICH VALVES HP03 Pattern: Rated Pressure to: 10 000 psi (700 bar) Max Flow to 10 gpm (38 L/min) HP05 Pattern: Rated Pressure to: 8 000 psi (700 bar) Max Flow to 5 gpm (19 L/min)
SV-25 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls
SV-50 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls
SV-100 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls
SV-150 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls
Port size: 1/4" Cv = .95; Rated Flow = 10 gpm Working Pressures available: 3000 and 6000 psi
Port size: 1/2" Cv = 3.2 Rated Flow = 30 gpm Working Pressures available: 3000 and 6000 psi
Port size: 1" Standard: Cv = 9.2 Rated Flow = 75 gpm Dual Pressure: Cv = 3.2 Rated Flow = 30 gpm Spring Center: Operating pressure 1500 psi Working Pressures available: 3000 & 6000 psi
Port size: 1-1/2" SV-150: Cv = 21 Rated Flow = 180 gpm SV-150DP: Cv = 10 Rated Flow = 90 gpm Working Pressures available: 3000 & 5000 psi
This directional control valve DN6 is of 3/2 type. It is pneumatically piloted (port X). A block-before-bleed function ensures that the ports are never cross-connected during switching the valve. This means during operation, no leakage can occur. Due to the working principle, the valve is leakage free. The pneumatic actuator is designed using a diaphragm...
Directional control valves are suitable to control cylinder drives, they can be of many types such as 2/2, 3/2 and 4/2 or 4/3. Most common types to operate are 3/2. The valve itself is operated by a direct acting solenoid. The solenoid is certified for use in hazardous location. Due to the working principle of using a poppet, the valve is leakage free. If...
Directional control valves direct the flow in various directions (P->A with 2/2 valves and P->A // A->T with 3/2 valves). Driven by a solenoid, this valve is direct-acting. Due to the working principle of using a poppet, the valve is leakage free. The solenoid is acting on a lever that operates the valve cartridge. It is possible to operate the...
