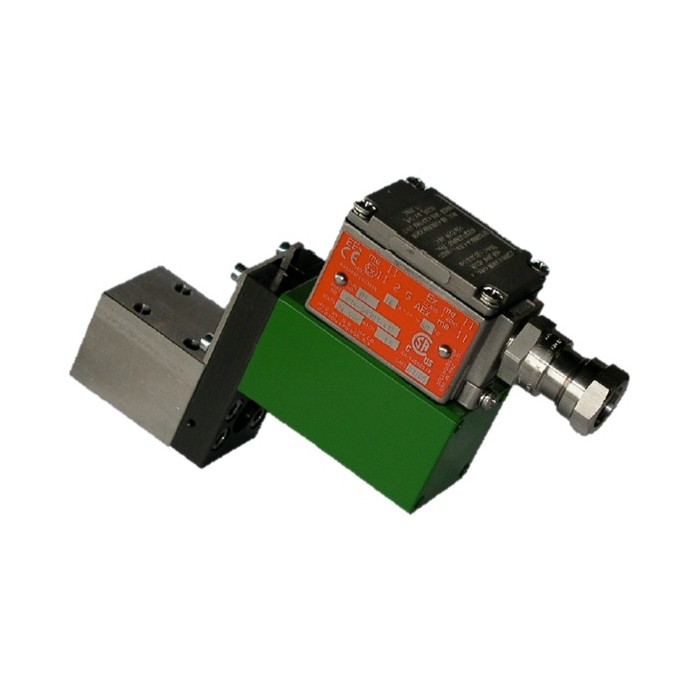

Control Valve DN2 or DN3

D08 Pattern Valves

DYNEX D08 – N.F.P.A. D08/ISO 08 PATTERN DIRECTIONAL CONTROL VALVES Nominal Flow: 40 gpm (151 L/min), Max Flow: 90 gpm (341 L/min) Rated Pressure: 5 000 psi (350 bar)

D08H High Flow Valve

DYNEX D08H – N.F.P.A. D08/ISO 08 PATTERN DIRECTIONAL CONTROL VALVES Nominal Flow: 20 gpm (76 L/min), Max Flow: 40 gpm (152 L/min) Rated Pressure: 5 000 psi (350 bar)

HP03 High Pressure Valves

DYNEX HP03 (Special High Pressure Pattern) DIRECTIONAL CONTROL VALVES Nominal Flow: 5 gpm (19 L/min), Max Flow: 15 gpm (57 L/min) Rated Pressure: 10 000 psi (700 bar)

HP05 High Pressure Valves

DYNEX HP05 – N.F.P.A. (Special High Pressure Pattern) DIRECTIONAL CONTROL VALVES Nominal Flow: 5 gpm (19 L/min), Max Flow: 25 gpm (95 L/min) Rated Pressure: 8 000 psi (560 bar)

HP05H High Pressure Flow Valve

DYNEX HP05H – N.F.P.A. (Special High Pressure Pattern) DIRECTIONAL CONTROL VALVES Nominal Flow: 30 gpm (114 L/min), Max Flow: 40 gpm (151 L/min) Rated Pressure: 8 500 psi (586 bar)

VST Series Seated Valve

DYNEX VST SEATED VALVES – (Special HP03 Pattern) DIRECTIONAL CONTROL VALVES

VSW Series Sandwich Valves

VSW HIGH PRESSURE ACCESSORY SANDWICH VALVES HP03 Pattern: Rated Pressure to: 10 000 psi (700 bar) Max Flow to 10 gpm (38 L/min) HP05 Pattern: Rated Pressure to: 8 000 psi (700 bar) Max Flow to 5 gpm (19 L/min)

SV-25 Repair Kits

 SV-25 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls

SV-50 Repair Kits

SV-50 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls

SV-100 Repair Kits

SV-100 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls

SV-150 Repair Kits

SV-150 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls

SV-25 Directional Control Valve

Port size: 1/4" Cv = .95;  Rated Flow = 10 gpm  Working Pressures available: 3000 and 6000 psi

SV-50 Directional Control Valve

Port size: 1/2" Cv = 3.2   Rated Flow = 30 gpm Working Pressures available: 3000 and 6000 psi

SV-100 Directional Control Valve

Port size: 1" Standard: Cv = 9.2   Rated Flow = 75 gpm Dual Pressure: Cv = 3.2   Rated Flow = 30 gpm Spring Center: Operating pressure 1500 psi Working Pressures available: 3000 & 6000 psi

SV-150 Directional Control Valve

Port size: 1-1/2" SV-150: Cv = 21  Rated Flow = 180 gpm SV-150DP: Cv = 10  Rated Flow = 90 gpm Working Pressures available: 3000 & 5000 psi

SV-200 Directional Control Valve

Port size: 2" Cv = 33 Rated Flow = 300 gpm

Diverter valves

DH Series DF Series DFE Series

Hydraulic Valve

Pressure pre-compensated Load-Sensing and...

SAE Cartridge Valves

Sectional valves

Directional control valves with direct...

Hydraulic Interface Valve DN6

This directional control valve DN6 is of 3/2 type. It is pneumatically piloted (port X). A block-before-bleed function ensures that the ports are never cross-connected during switching the valve. This means during operation, no leakage can occur. Due to the working principle, the valve is leakage free. The pneumatic actuator is designed using a diaphragm...

Control Valve DN3 or DN6

Directional control valves direct the flow in various directions (P->A with 2/2 valves and P->A // A->T with 3/2 valves). Driven by a solenoid, this valve is direct-acting. Due to the working principle of using a poppet, the valve is leakage free. The solenoid is acting on a lever that operates the valve cartridge. It is possible to operate the...

SPRV Series Subplates

DIRECTIONAL CONTROL VALVE SUBPLATES WITH INTEGRAL RELIEF VALVES
