PV4000-11 Series Pressure Compensated Pumps
Dynex

PV4000-11 Series Pressure Compensated Pumps

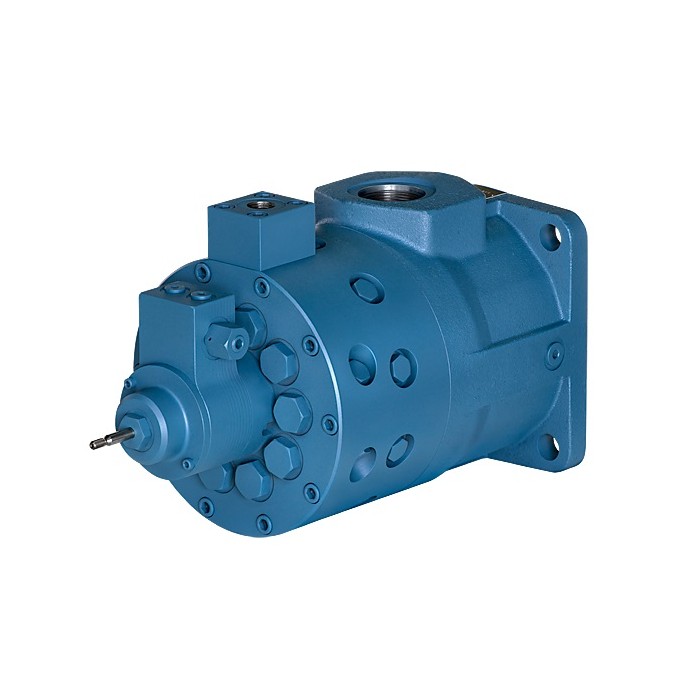

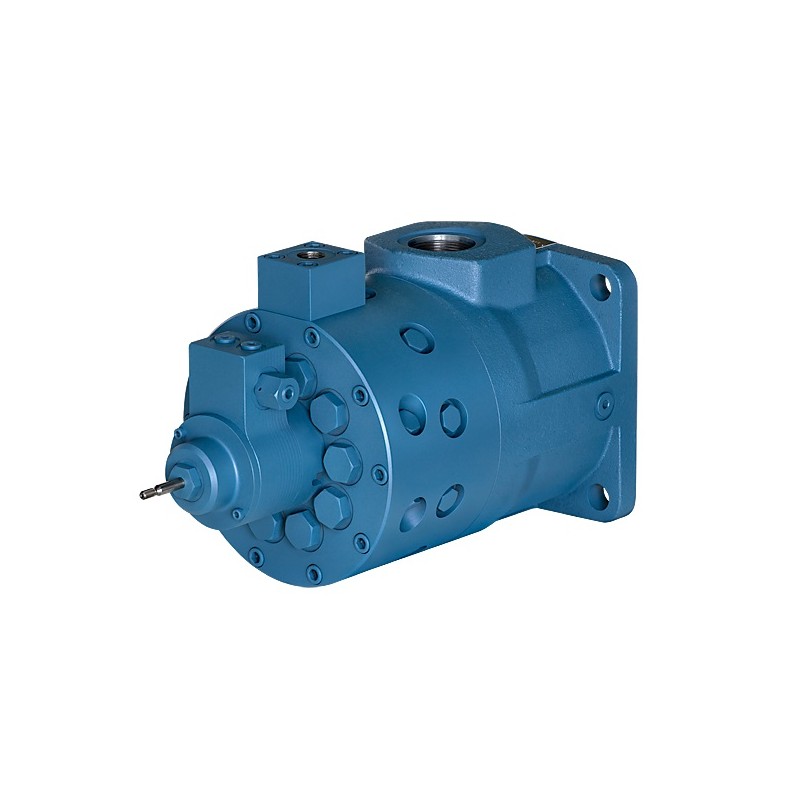

DYNEX PV4000 SERIES PRESSURE COMPENSATED CHECKBALL PUMPS

7.3 to 13.2 gpm (27,6 to 49,9 L/min) at 1800 rpm
Rated: 6 000 psi (420 bar), Maximum: 10 000 psi (700 bar)

  • Integral pressure compensation for energy efficient performance.
  • Contamination tolerant, for operation in dirty environments.
  • A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids.
  • Shaft Options: Standard keyed.
  • Seal Options: Standard Nitrile. Optional Fluorocarbon, or EPR seals for use with some phosphate ester fluids.

Dynex Checkball P/Pump Catalogue

Full catalogue

Download (2.53M)

Dynex Checkball pump Ser. n Inst

Download (818.33k)

Dynex Pump Application Guide

Download (1.76M)

Dynex PV4000-11specs

Download (457.2k)
