Sold
Dynex Split Flow Pump

Dynex

Split Flow Pump

Split-Flow Pumps

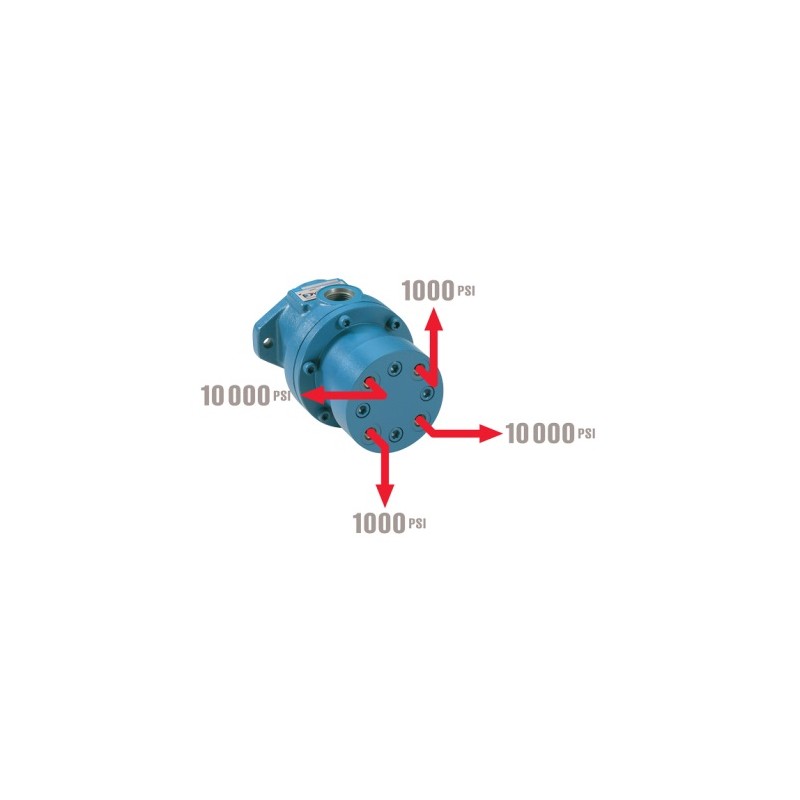

The checkball pump design, with its individual piston check valves, offers a unique advantage among hydraulic pump designs. With our design each pumping chamber can be isolated, and the output from each piston can be used separately! This means ONE Dynex pump can supply multiple functions and synchronized movement without flow dividers. We call this Split-Flow® technology and we patented the design a long time ago.

This unique design offers significant benefits including:

  • Multiple pumps in a system can be replaced by one Dynex multiple-outlet pump.
  • One pump can supply independent flows in a circuit with separate changing loads.
  • More accurate output then flow dividers, especially when cascaded in series circuits.
  • Reduced costs with fewer components, less piping, and less maintenance

Dynex Checkball P/Pump Catalogue

Full catalogue

Download (2.53M)

Dynex Checkball pump Ser. n Inst

Download (818.33k)

Dynex Pump Application Guide

Download (1.76M)
