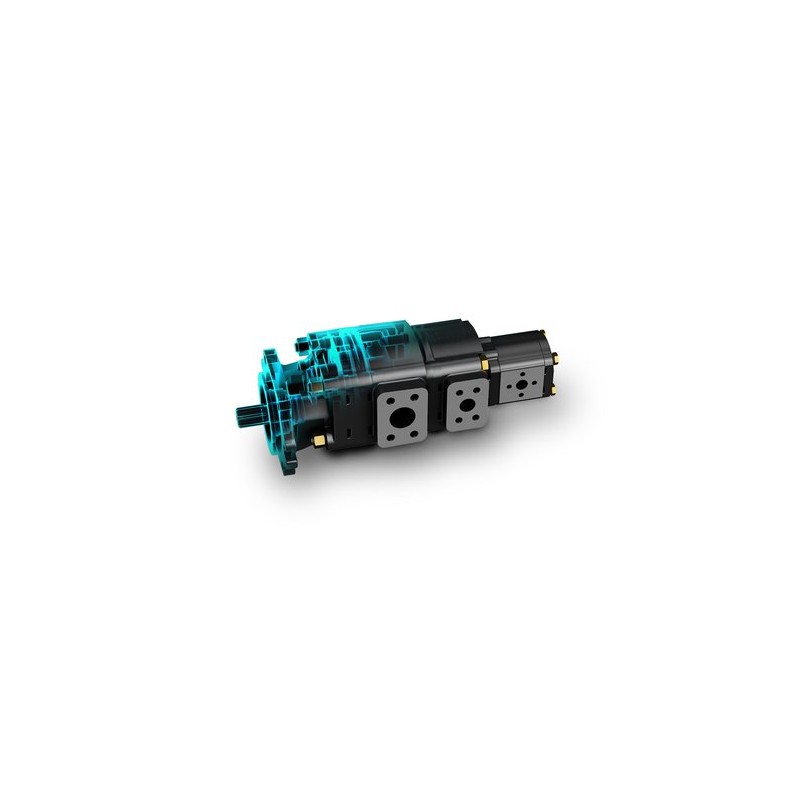

Cast Iron Magnum Gear Pump/Motor
Casappa

Cast Iron Magnum Gear Pump/Motor

Magnum [HD]

Features

Gear pumps and motors made of cast iron in three pieces.

An extremely versatile and reliable design, also in the most extreme operating conditions.

Displacements from 1.05 in³/rev (17,28 cm³/rev) to 7.66 in³/rev (125,63 cm³/rev) available in groups 30 and 35.
Max. peak pressure up to 4640 psi (320 bar).
Max. speed up to 3000 min-1

  • Wide range of drive shafts and flanges in SAE version
  • More choices of port locations
  • Integrated outboard bearings for heavy duty applications
  • Multiple units available in standard version, common inlet and separated stages
  • Exceptional working life expectancy

Casappa Product Catalogue

Download (1.26M)

Casappa MAGNUM series

Download (3.49M)
