Sold

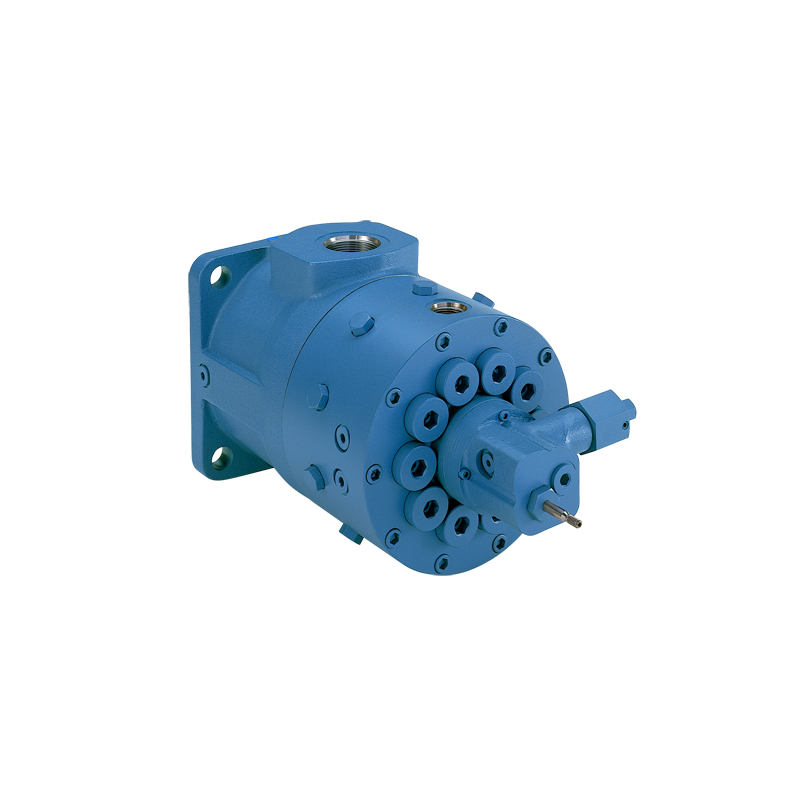

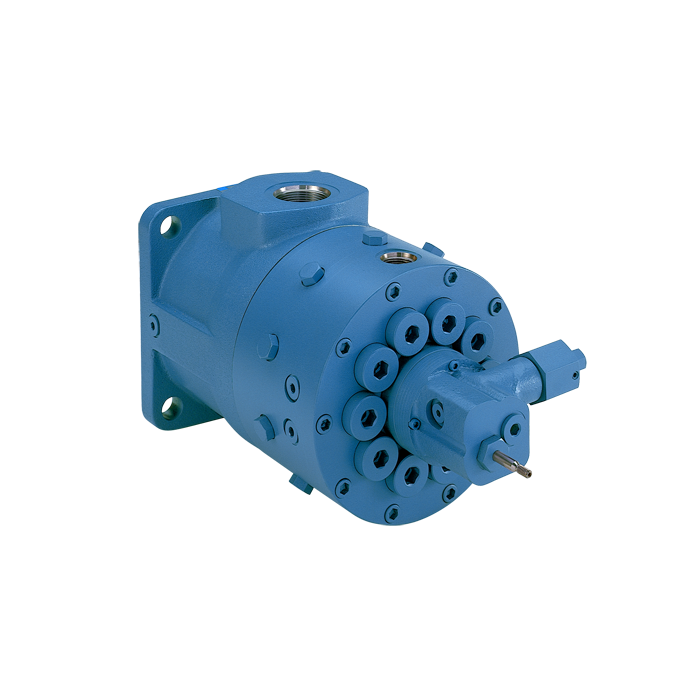

PV4000 Series Pump
Dynex

PV4000 Series Pressure Compensated Pumps

DYNEX PV4000 SERIES PRESSURE COMPENSATED CHECKBALL PUMPS

12.0 to 22.4 gpm (45,4 to 84,8 L/min) at 1800 rpm
Rated: 4 000 psi (280 bar), Maximum: 8 500 psi (590 bar)

  • Integral pressure compensation for energy efficient performance.
  • Contamination tolerant, for operation in dirty environments.
  • A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids.
  • Shaft Options: Standard keyed.
  • Seal Options: Standard Nitrile. Optional Fluorocarbon, or EPR seals for use with some phosphate ester fluids.

Dynex Checkball P/Pump Catalogue

Full catalogue

Download (2.53M)

Dynex Checkball pump Ser. n Inst

Download (818.33k)

Dynex Pump Application Guide

Download (1.76M)

Dynex PV Series P/C Pump

PV4000 & PV6000 Series Pressure Compensation Pump

Download (744.05k)
