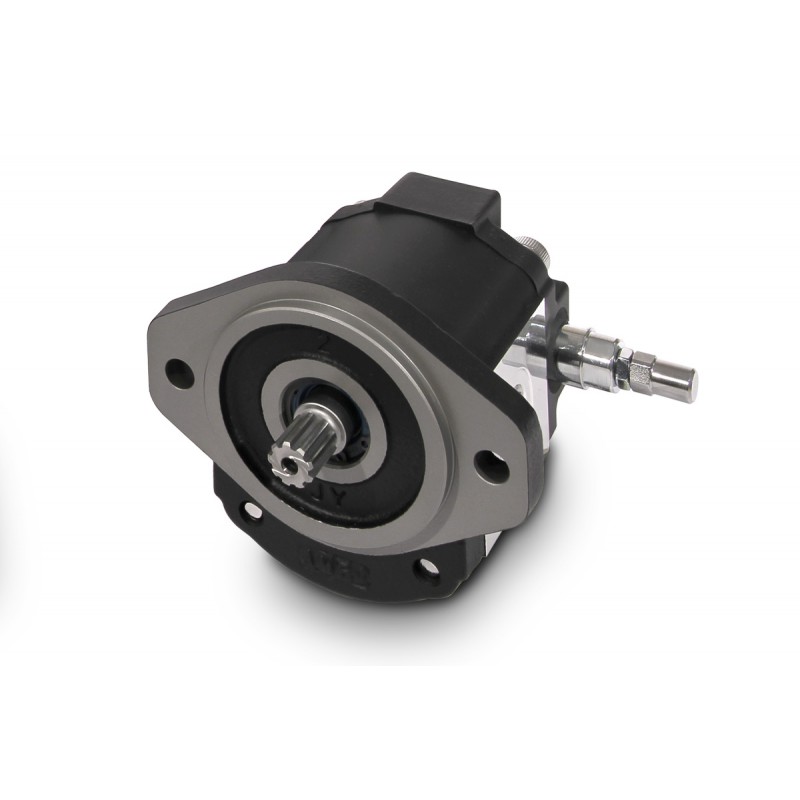

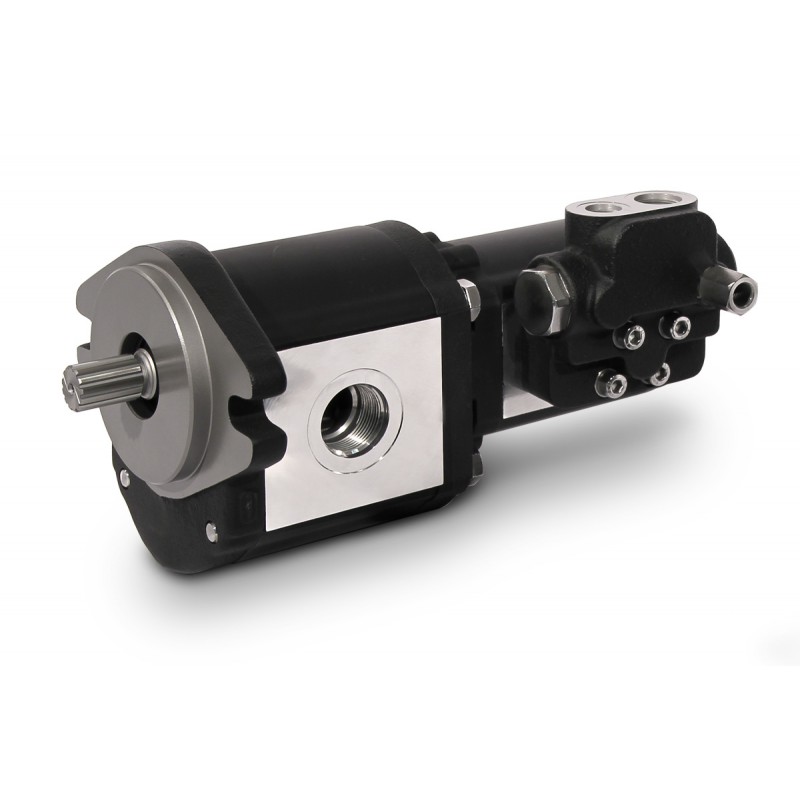

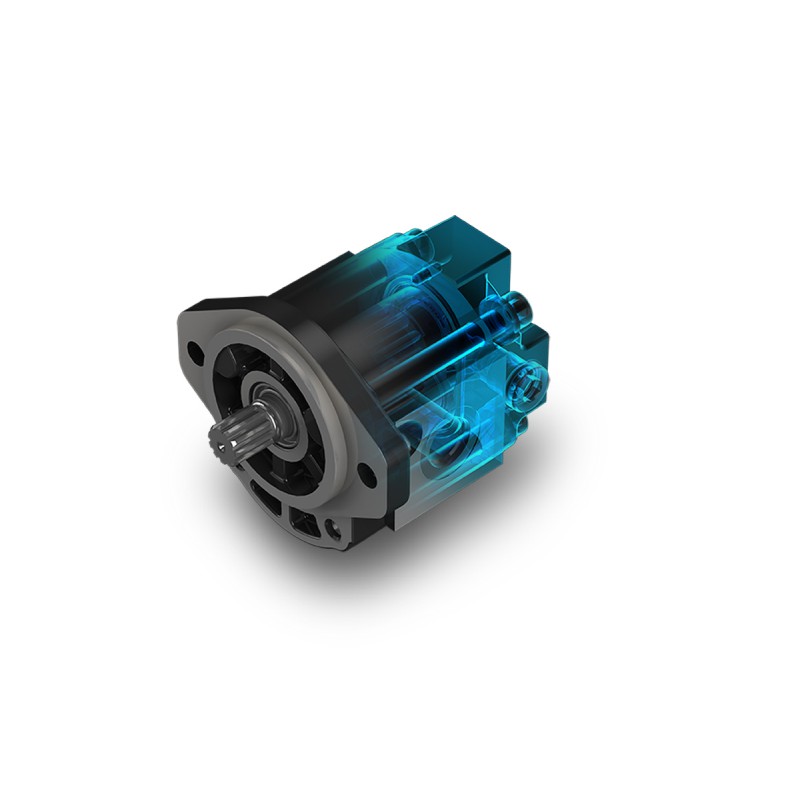

Aluminium Polaris Pump
Previous Next

Casappa

Aluminium Polaris Pump

Polaris [PLP]

Gear pumps and motors built in three pieces with an extruded body in high resistance aluminium alloy.

Displacements from 0.07 in³/rev (1,07 cm³/rev) to 5.56 in³/rev (91,10 cm³/rev) available in groups 10, 20 and 30.
Max. peak pressure up to 4350 psi (300 bar).
Max. speed up to 4000 min-1

  • High efficiencies
  • Integrated outboard bearings for heavy duty applications
  • Multiple units available in standard version, common inlet and separated stages
  • Electro-hydraulic fan drive system
  • Custom design

Built-in valves

  • Anti-cavitation valves
  • Maximum pressure relief valves
  • Priority valves
  • “Load sensing” priority valves
  • By-pass electric valves
  • Proportional relief valves
  • Reverse valves

Cassapa Product Catalogue

Download (1.26M)

Cassapa Polaris Catalogue

Download (1.85M)

Casappa POLARIS series

Download (2.89M)
