Sold

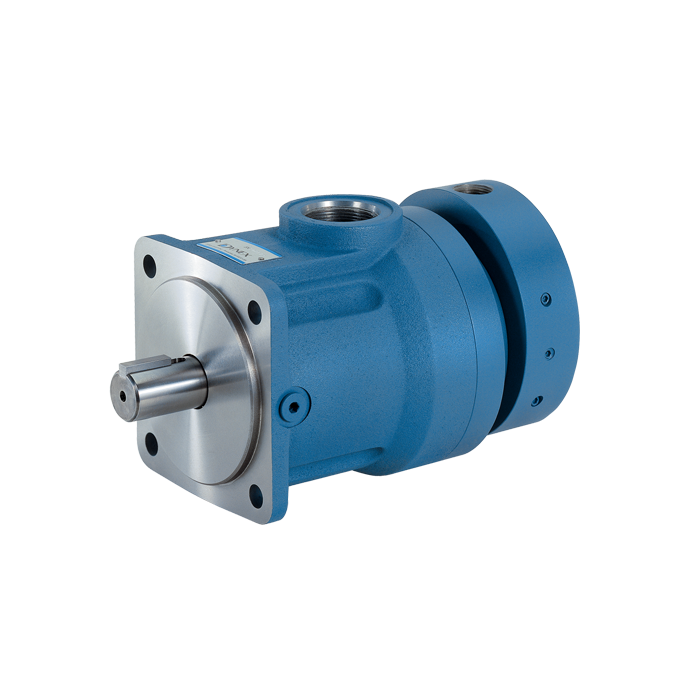

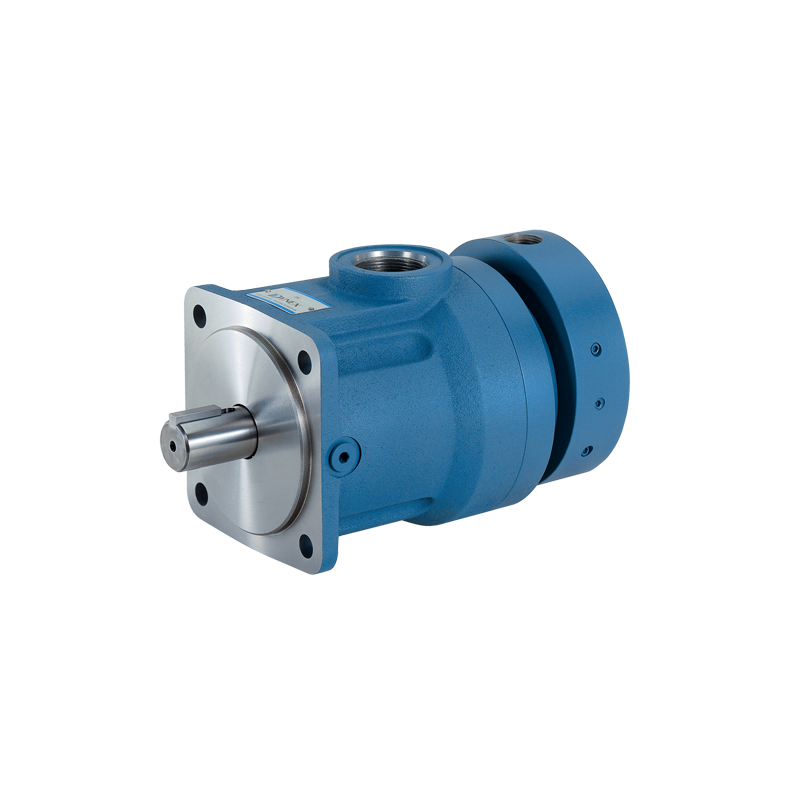

Dynex PF3000 Series
Dynex

PF3000 Series Pump

DYNEX PF3000 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS

8.1 to 17.2 gpm (30,7 to 65,1 L/min) at 1800 rpm
Rated: 4 000 psi (700 bar), Maximum: 10 000 psi (1040 bar)

  • Contamination tolerant, for operation in dirty environments.
  • Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
  • Shaft Options: Standard keyed, Optional spline.
  • Seal Options: Standard Nitrile, optional Fluorocarbon, or EPR seals for use with some phosphate ester fluids.
  • Split-Flow® models can supply independent flows from up to eight separate outlets

Dynex Checkball P/Pump Catalogue

Full catalogue

Download (2.53M)

Dynex Checkball pump Ser. n Inst

Download (818.33k)

Dynex Pump Application Guide

Download (1.76M)

Dynex PF3000 Seres Pump

Download (325.32k)
