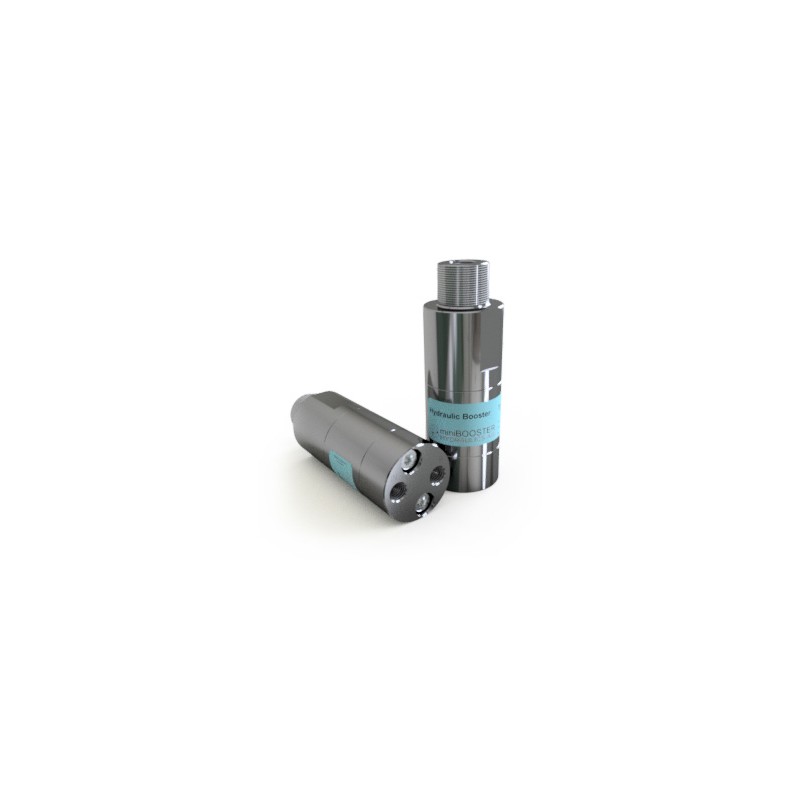

HC1W Series Booster
miniBOOSTER

HC1W Series Booster

HC1W versions: 9 different intensification factors

PIN: 20 – 207 bar (inlet pressure) PRETURN: As low as possible (return pressure to tank)

PH: 800 bar maximum (outlet pressure)

POUTLET: PH = (PIN – PReturn) x I (intensification)

Mounting: Inline tube

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC1W is the most compact miniBOOSTER stainless steel 316L unit weighing only 0.7 kg. It is ideal for use in applications where it is desirable to mount the unit on or in a tool, power pack, or other device.

The HC1W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
