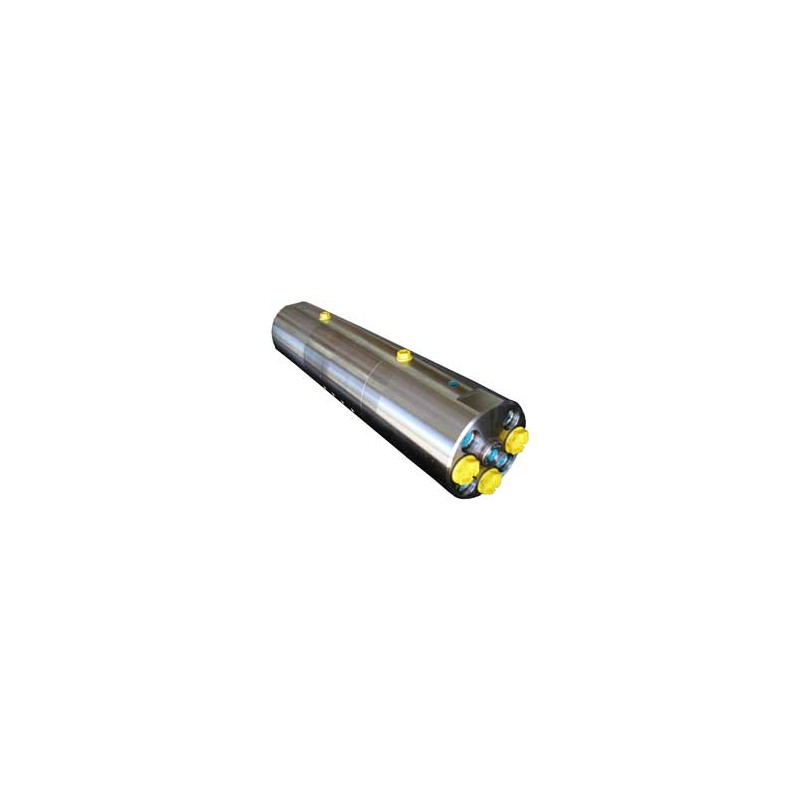

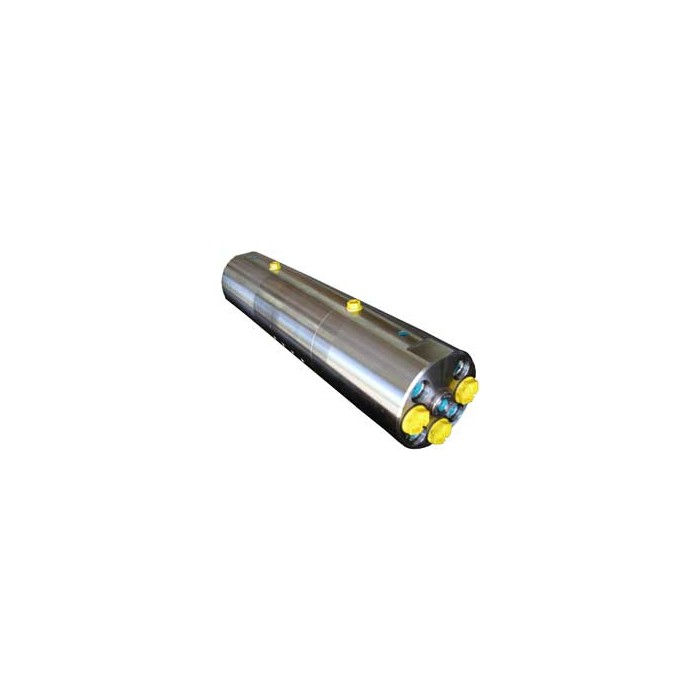

HC6D2W Series Booster
miniBOOSTER

HC6D2W Series Booster

HC6D2W versions: 9 different intensification factors

PIN: 20 – 207 bar (inlet pressure)

PH: 800 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification) The intensification ratio is related to the inlet pressure at media 2, the values in the table are measured at 1 bar on media 2

Drain connections: Max. 10 bar

Mounting: Inline tube

A model = no dump valve

The HC6D2W is a dual media stainless steel 316 L unit which is capable of delivering up to 28 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6D2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6D2W is a compact unit weighing 24 kg.

MiniBooster HC6D2W Series

Download (188.63k)
