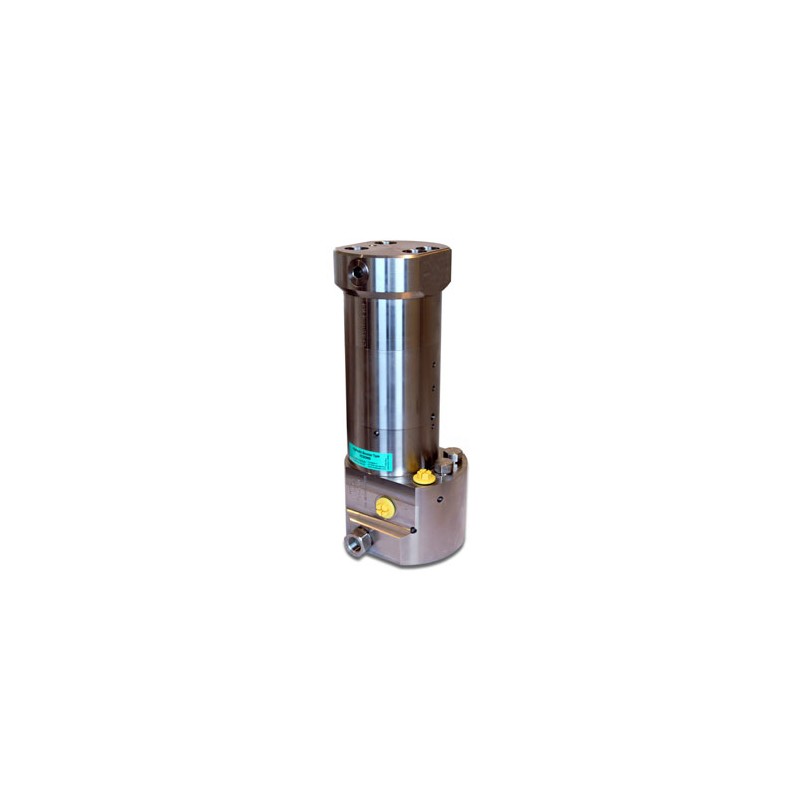

HC6DW Series Booster
miniBOOSTER

HC6DW Series Booster

HC6DW versions: 14 different intensification factors

PIN: Inlet pressure 20-207 bar

PH: 800 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) I (intensification)

Mounting: Inline tube

Accessories: Pilot-operated dump valve available

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC6DW is a high flow dual-acting stainless steel 316 L unit which is capable of delivering up to 33.3 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6DW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6DW is a compact unit weighing 34.8 kg.

MiniBooster HC6DW Series

Download (321.52k)
