Sold

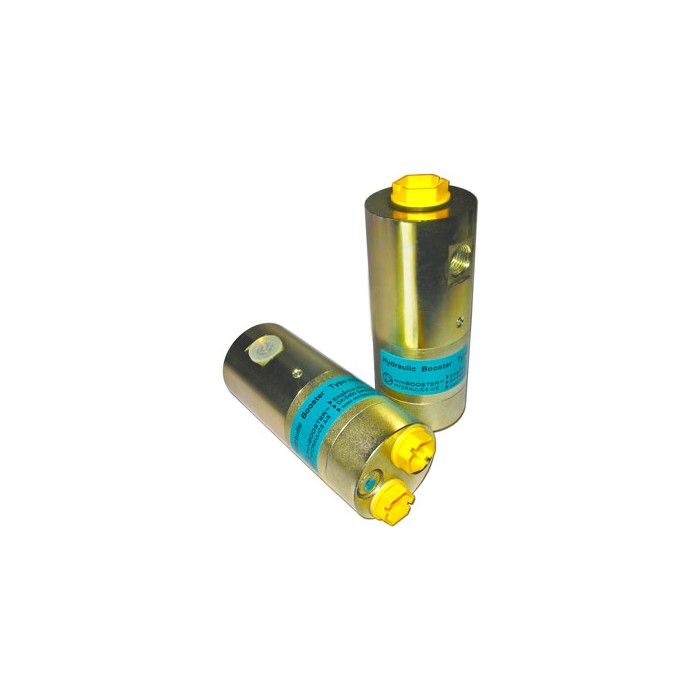

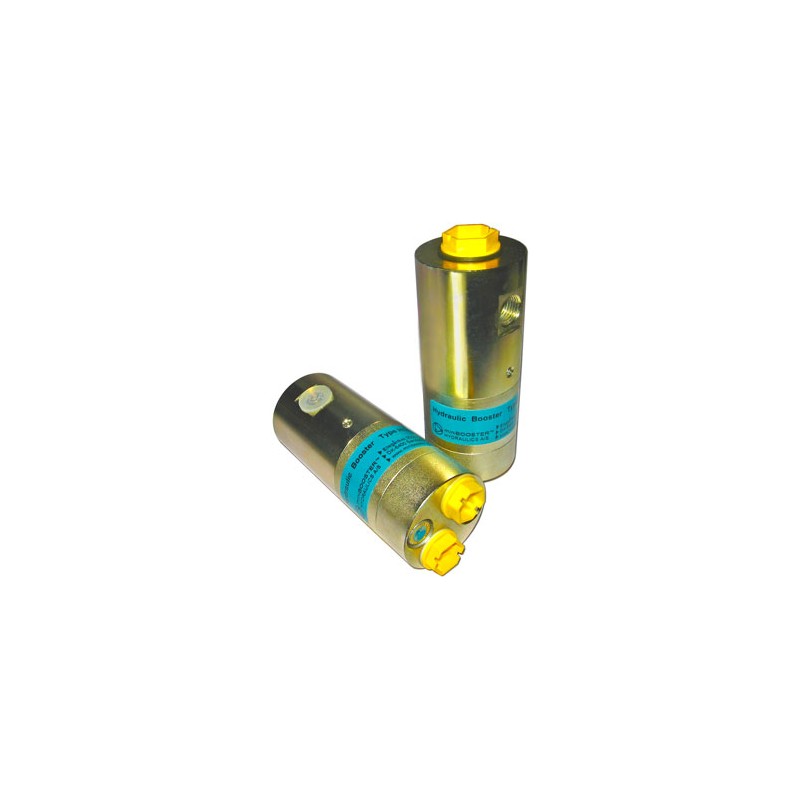

HC7 Series Booster
miniBOOSTER

HC7 Series Booster

HC7 versions: 5 different intensification factors

PIN: 20 – 207 bar (inlet pressure)

PH: 2000 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) x i (intensification)

Mounting: Inline tube

Accessories: Pilot-operated dump valve incorporated

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC7 is a very compact high-pressure unit capable of delivering pressure up to 2,000 bar weighing only 1.5 kg. It is ideal for use in portable applications like on power packs.

The HC7 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high- pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.

MiniBooster HC7 Series

Download (230.99k)
