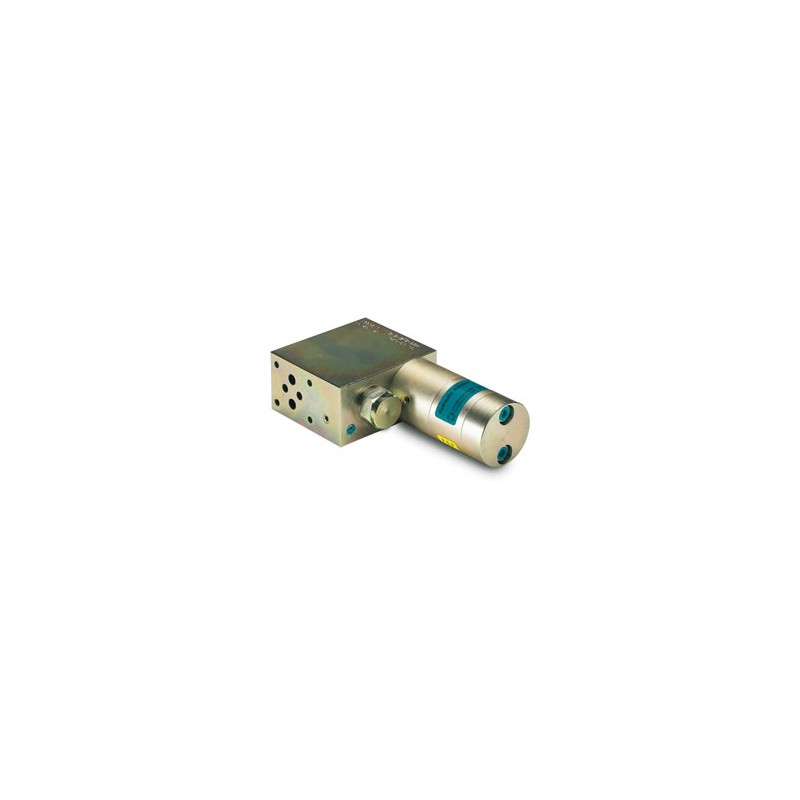

HC3-C Series Booster
miniBOOSTER

HC3-C Series Booster

HC3 versions: 11 different intensification factors

PIN: 20 – 207 bar (inlet pressure)

PH: 500 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification)

Mounting: NG6 (D03) stacking manifold system

A model = no dump valve G model = direct proportionally controlled

The HC3–C, a variant of the HC3, is used for applications with larger flow rates, providing a fast response with build-in by-pass up to 50 l/min. It is a compact unit weighing only 4.0 kg, designed for use in NG6 (D03) stacking manifold systems. Maximum outlet pressure is 500 bar in standard versions. An adjustment of the outlet pressure is carried out by varying the supplied pressure.

MiniBooster HC3-C Series

Download (188.86k)
