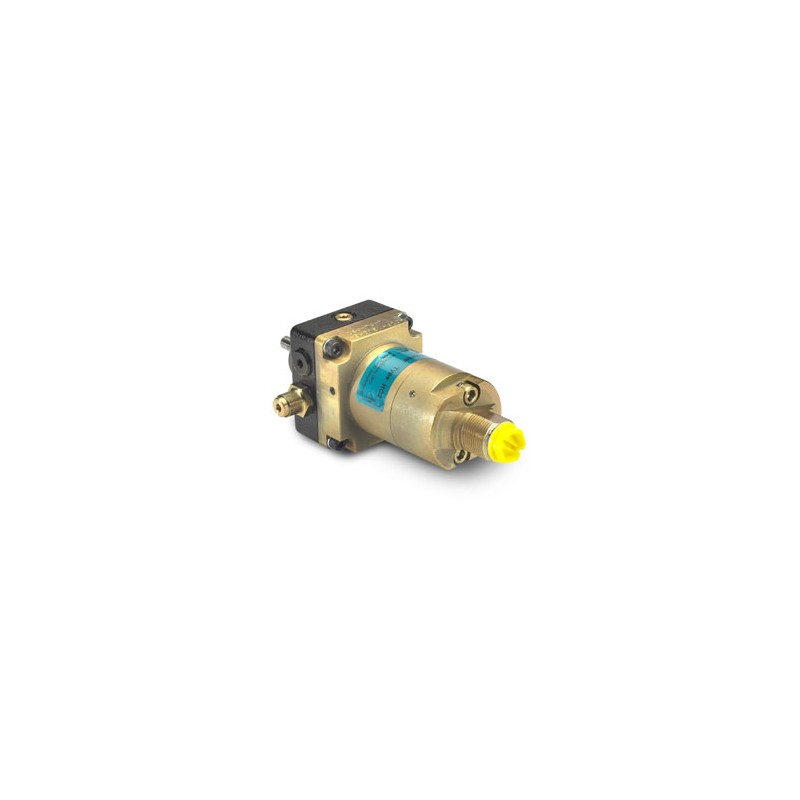

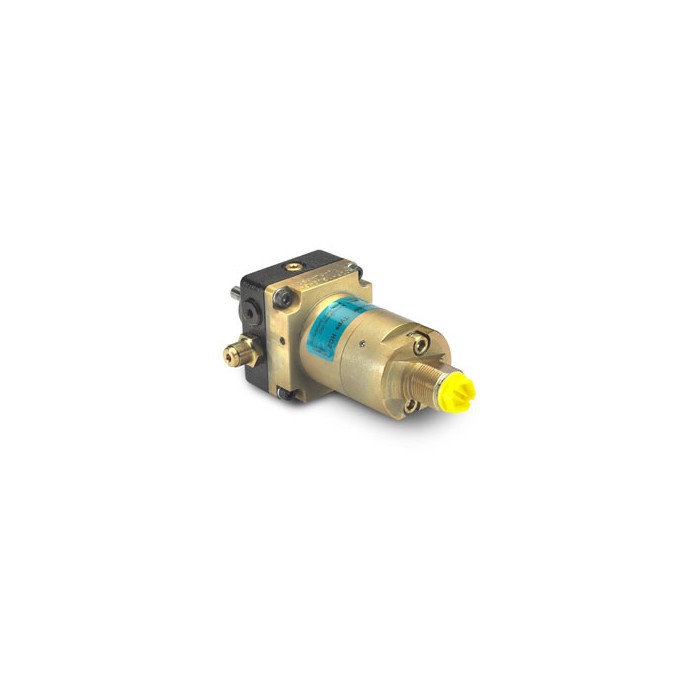

HC2P Series Booster
miniBOOSTER

HC2P Series Booster

HC2P versions: 10 different intensification factors

PIN: 0.4 bar vacuum to 2 bar in suction line (inlet pressure)

PH: 800 bar maximum (outlet pressure)

POUTLET PH = (PIN – PReturn) i (intensification)

Mounting: Inline tube

Rotation speed: Minimum 1,200 min-1 / maximum 3,000 Min-1

Starting torque: Maximum starting torque 0.14 Nm

Power consumption: 87 W

Accessories: Pilot-operated dump valve available

A model = no dump valve G model = direct proportionally controlled

The HC2P is a self-priming Booster pump supplying a pressure up to 800 bar. It is ideal for use in a variety of applications where no hydraulic system is available. The booster pump is a combination of a gear pump and the HC2 miniBOOSTER.

Like other miniBOOSTER models, the HC2P automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out on the low-pressure side (gear pump). Relative to its flow capability, the HC2P is a compact unit weighting only 2.1 kg.

MiniBooster HC2P Series

Download (229.87k)
