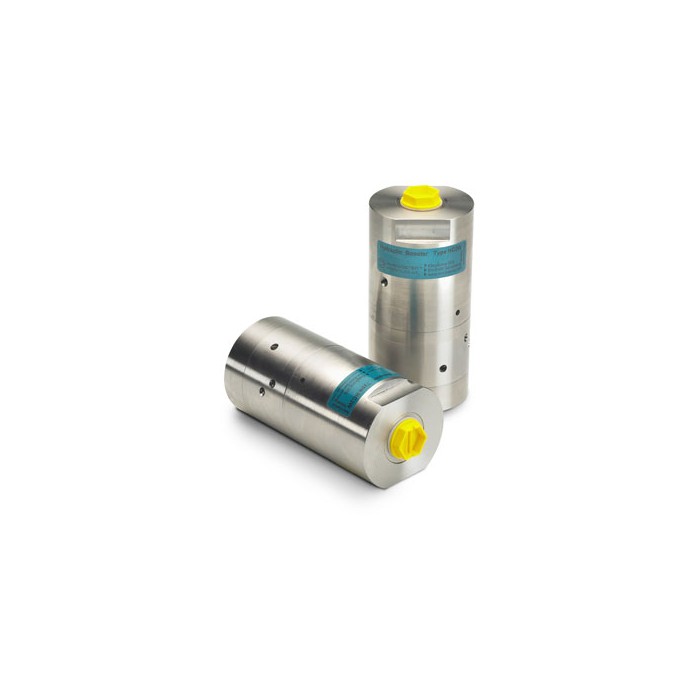

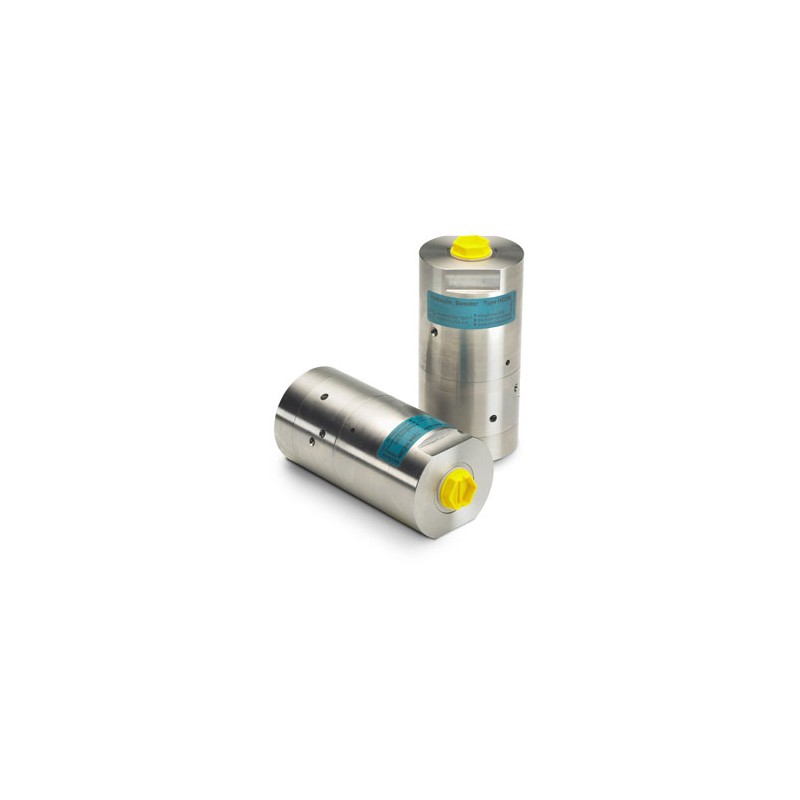

HC4W Series Booster
miniBOOSTER

HC4W Series Booster

HC4W versions: 9 different intensification factors

PIN: Inlet pressure 20-207 bar

PH: 800 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i ( intensification)

Mounting: Inline tube

Accessories: Pilot-operated dump valve available

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC4W is ideal for use in applications where a higher volume of high-pressure fluid is required. The HC4W is a compact stainless steel unit weighing only 4.5 kg, but it delivers up to 7.0 liters/min. outlet flow.

Like the HC2W, it raises supplied pressure and automatically compensates for consumption of media to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure relative to its flow capability.
