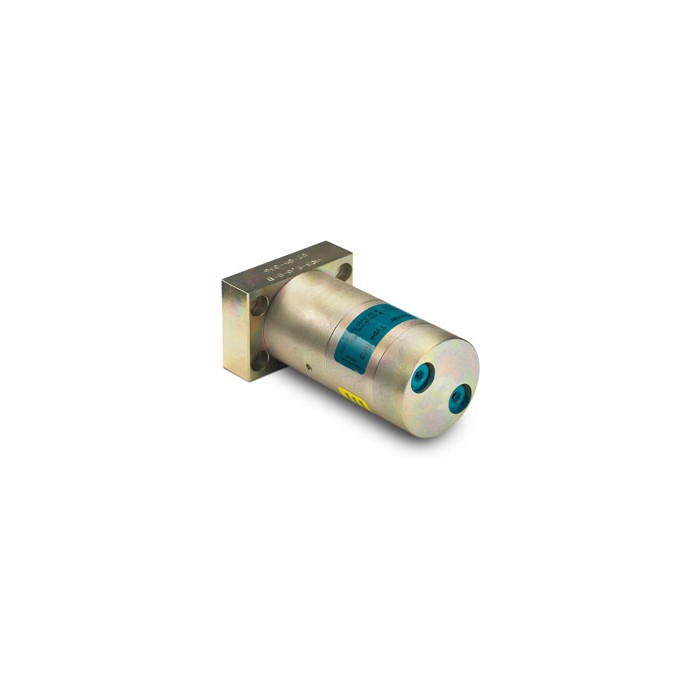

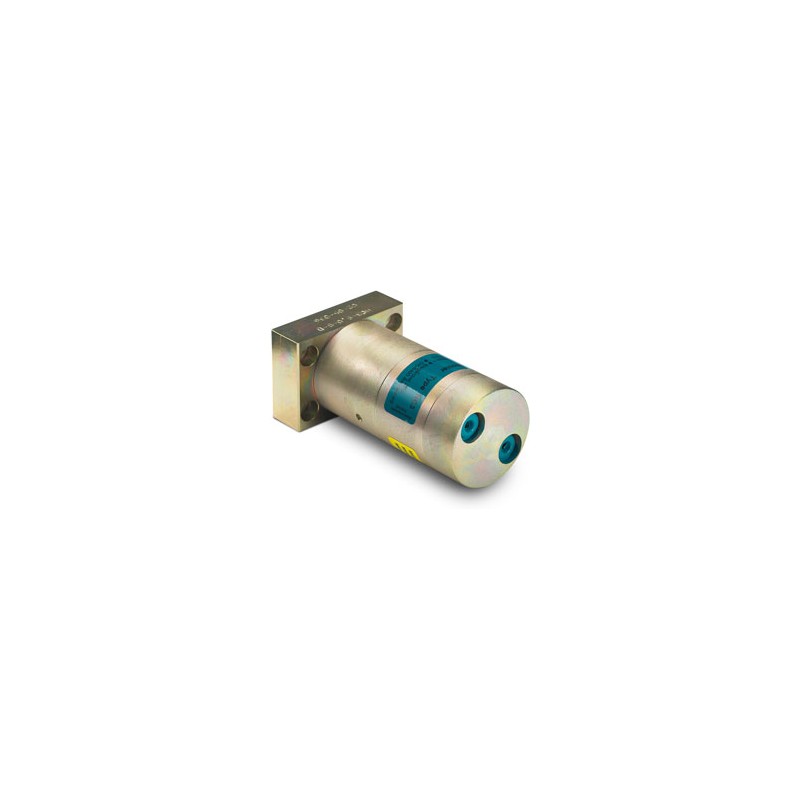

HC3-D Series Booster
miniBOOSTER

HC3-D Series Booster

HC3 - D versions: 11 different intensification factors

PIN: 20 – 207 bar (inlet pressure)

PH: 800 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification)

Mounting: Manifold system miniBOOSTER pattern

Accessories: Pilot-operated dump valve available

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC3 - D is a variant of the HC3, with all ports in one end. The entire pattern is a miniBOOSTER design. It is a compact unit weighing only 1.75 kg.

The HC3 - D has the pilot-operated dump valve incorporated as a standard feature. Maximum outlet pressure is 800 bar in standard versions. An adjustment of the outlet pressure is carried out by varying the supplied pressure.

MiniBooster HC3-D Series

Download (186.01k)
