Sold

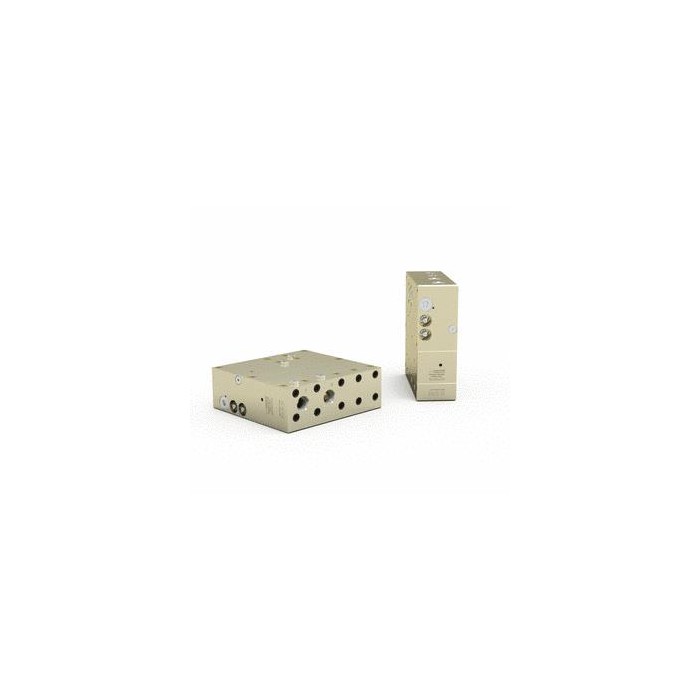

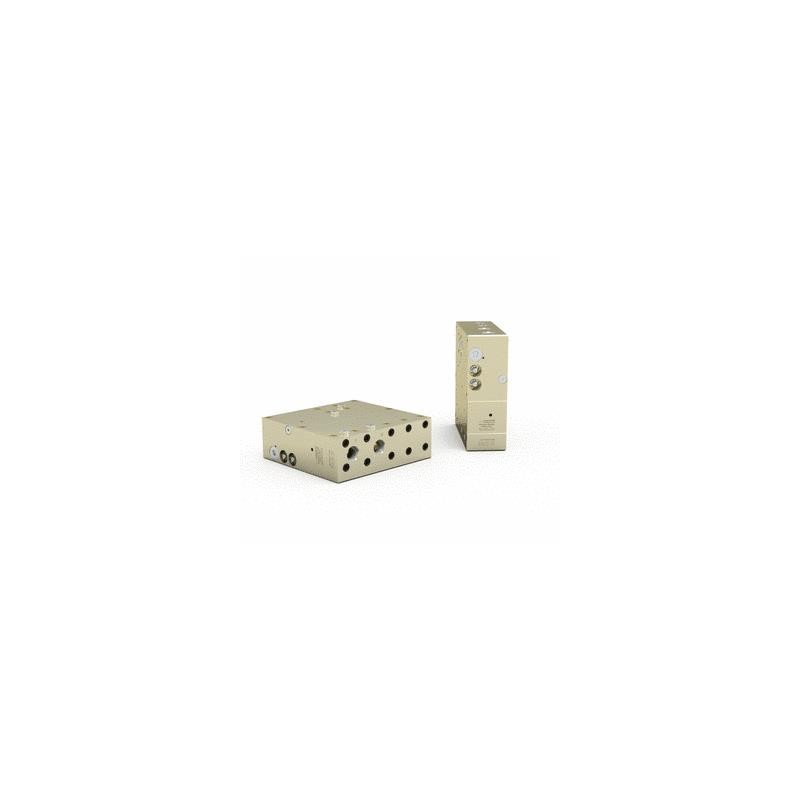

HC62 Series Booster
miniBOOSTER

HC62 Series Booster

HC62 versions: 9 different intensification factors

PIN: 20 – 207 bar (inlet pressure)

PH: 800 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification)

Mounting: Inline tube / HP-flange mounting (optional)

Accessories: Pilot-operated dump valve available

A model = no dump valve B model= with dump valve G model = direct proportionally controlled

The HC62 is a high-flow unit which is capable of delivering up to 43 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC62 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC62 is a compact unit weighing only 50.0 kg.
