miniBOOSTERHC6D2 Series Booster

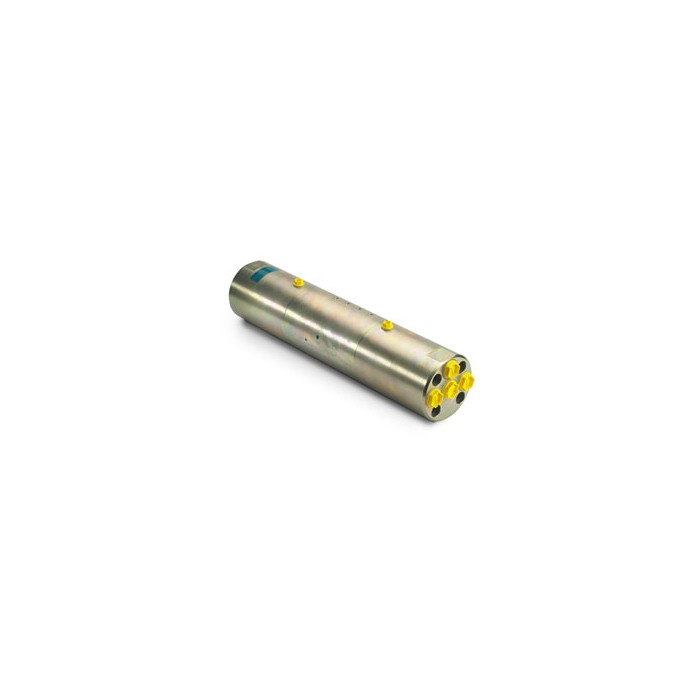

HC6D2 Series Booster
HC6D2 miniBOOSTER
HC6D2 versions: 9 different intensification factors
PIN: 20 – 207 bar (inlet pressure)
PH: 800 bar maximum (outlet pressure)
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PReturn) i (intensification) The intensification ratio is related to the inlet pressure at media 2, the values in the table are measured at 1 bar on media 2
Drain connections: Max. 10 bar
Mounting: Inline tube
A model = no dump valve
The HC6D2 is a dual media unit which is capable of delivering up to 41 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6D2 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6D2 is a compact unit weighing 24 kg.
