miniBOOSTERHC2D-D Series Booster

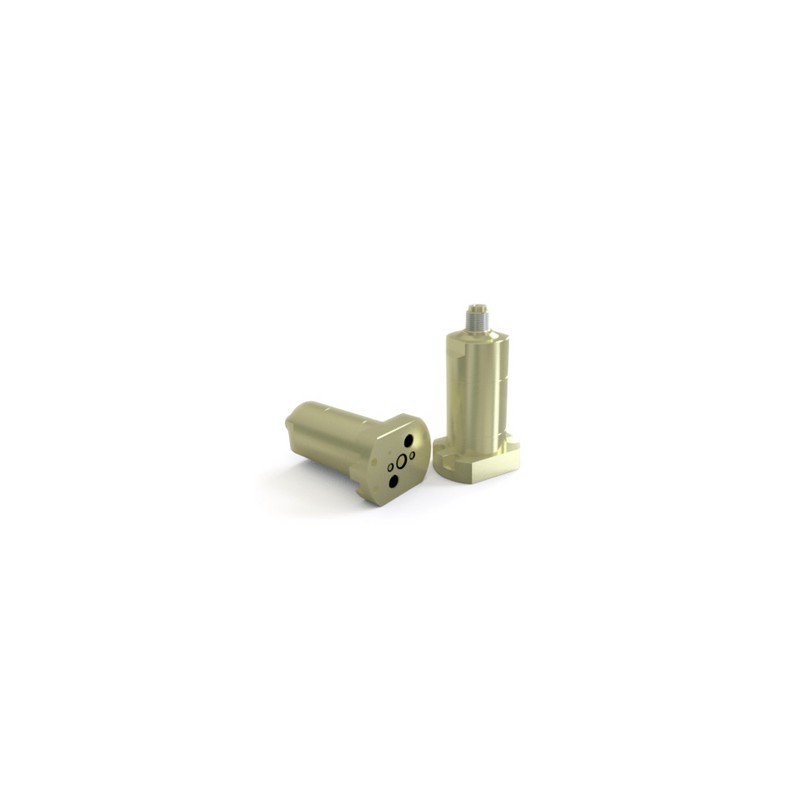

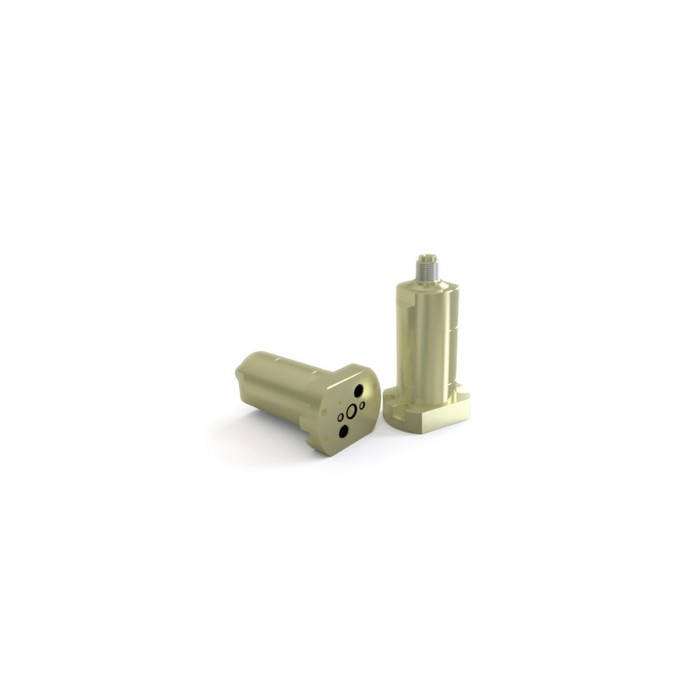

HC2D-D Series Booster
Up to 2.5 times the volume
HC2D-D versions: 13 different intensification factors
PIN: 20 – 207 bar (inlet pressure)
PRETURN: As low as possible (return pressure to tank)
PH: 800 bar maximum (outlet pressure)
POUTLET: PH = (PIN – PReturn) X i (intensification)
Mounting: Flange, manifold system miniBOOSTER pattern
Accessories: Pilot-operated dump valve available
A model = no dump valve B model = with dump valve G model = direct proportionally controlled
The HC2D-D is a high-flow dual-acting unit which is capable of delivering up to 11.0 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC2D-D raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2D-D is a compact unit weighing 3.5 kg. The entire pattern is a miniBOOSTER design.
