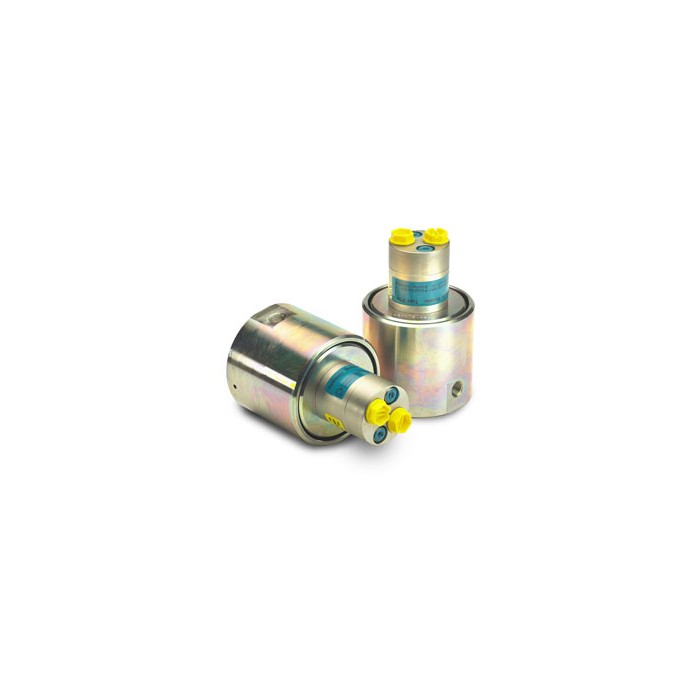

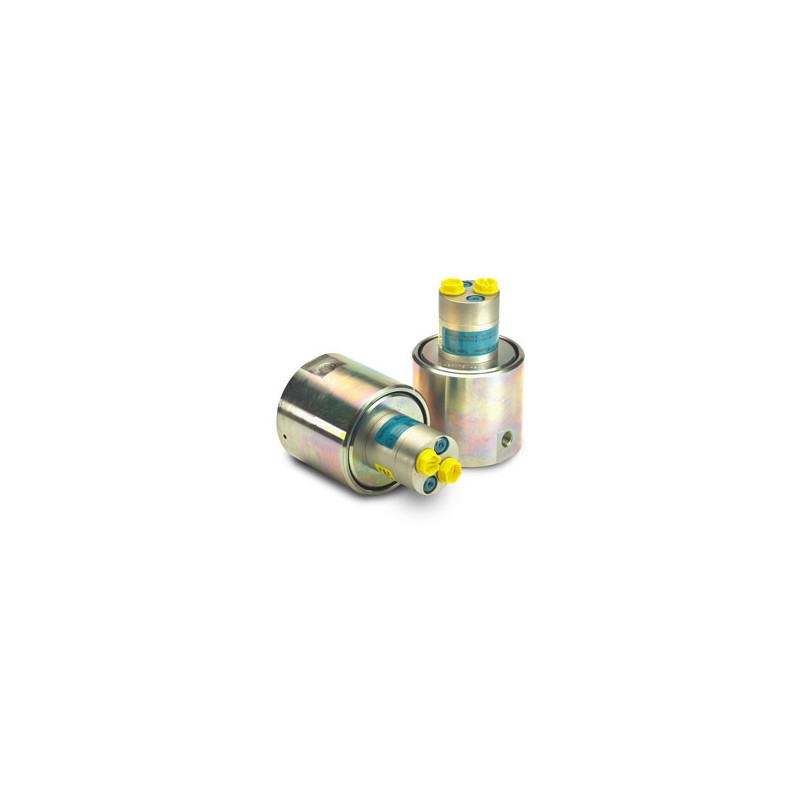

HC8 Series Booster
miniBOOSTER

HC8 Series Booster

HC8 versions: 5 different intensification factors

PIN: 20-207 bar (inlet pressure)

PH: 2,000 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) x i (intensification)

Mounting: Inline tube

Accessories: Pilot-operated dump valve incorporated. Pressure gauge/transducer connection available.

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC8 is developed for applications where intensified pressure up to 2,000 bar are required. Operating like the HC2, the HC8 is a unique, self-contained device which, boosts inlet pressure by up to a 20:1 ratio without the use of an external power source.

In addition, the HC8 maintains high pressure by automatically compensating for consumption of oil on the high-pressure side. High pressure is directly proportional to inlet pressure. The HC8 is a compact unit weighing 4.5 kg. The HC8 works at inlet pressure from 20 to 200 bar. Higher pressure is available on special request.

MiniBooster HC8 Series

Download (225.77k)
