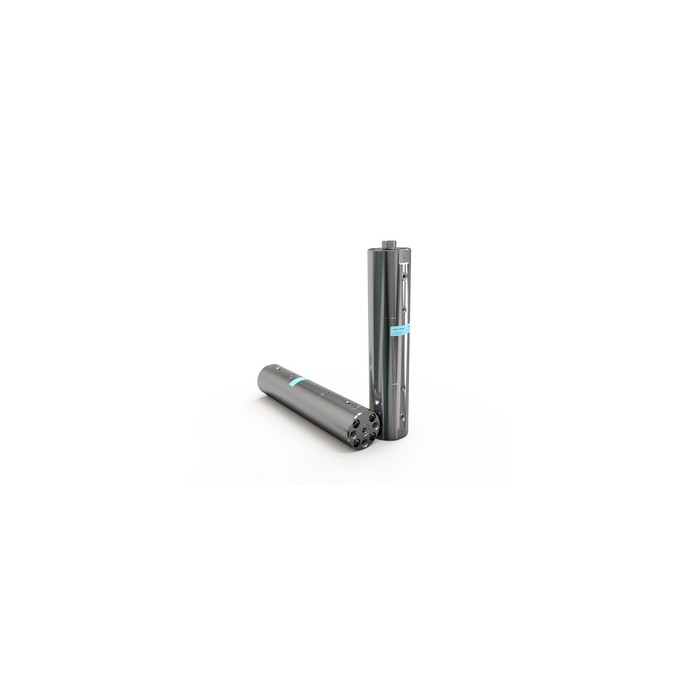

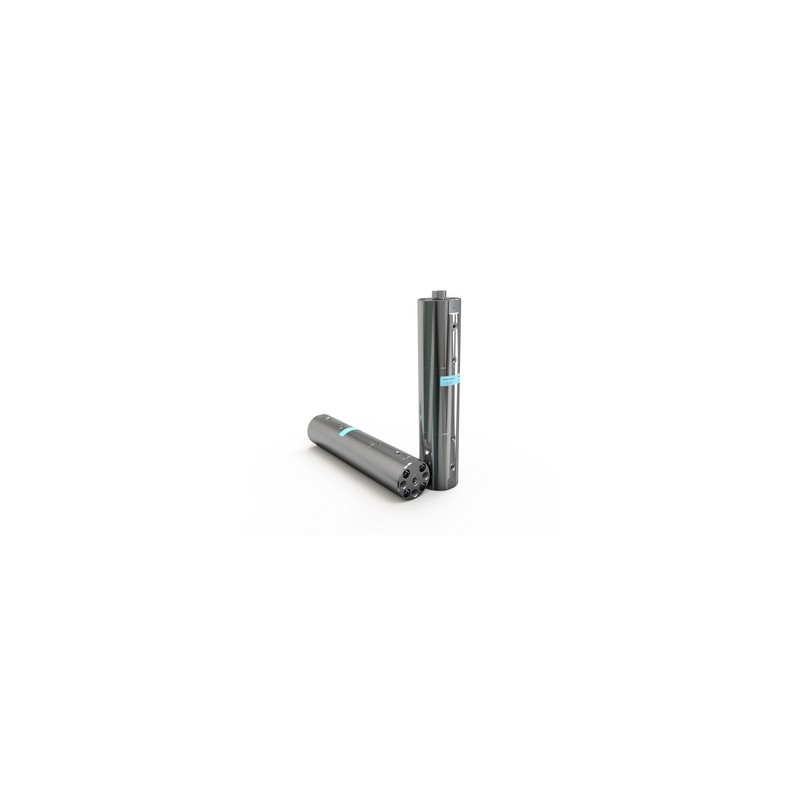

HC9D2W Series Booster
miniBOOSTER

HC9D2W Series Booster

HC9D2W versions: 5 different intensification factors

PIN: 20 – 207 bar (inlet pressure)

PH: 1380 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – Preturn) X i (intensification) The intensification factor is related to the inlet pressure of media 2, the values in the table are measured at 1 bar on media 2

Drain connections: Max. 10 bar

Mounting: Inline tube

A model = no dump valve

The HC9D2W is a stainless steel dual media unit which is capable of delivering up to 5.6 l/min flow on the high pressure end. Like other miniBOOSTER models, the HC9D2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC9D2W is a compact unit weighing 25 kg.
