miniBOOSTERHC1 Series Booster

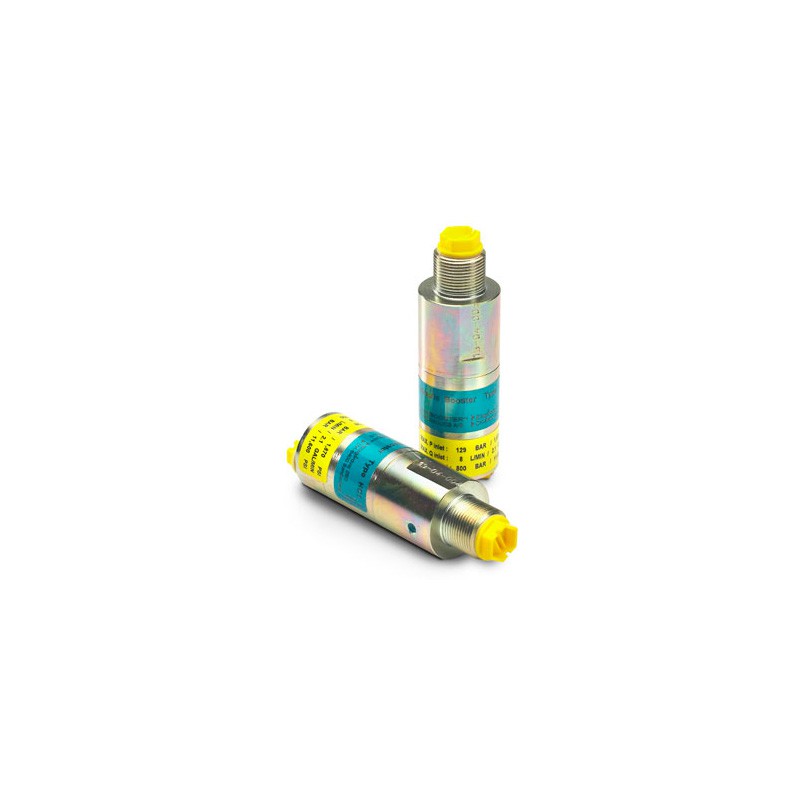

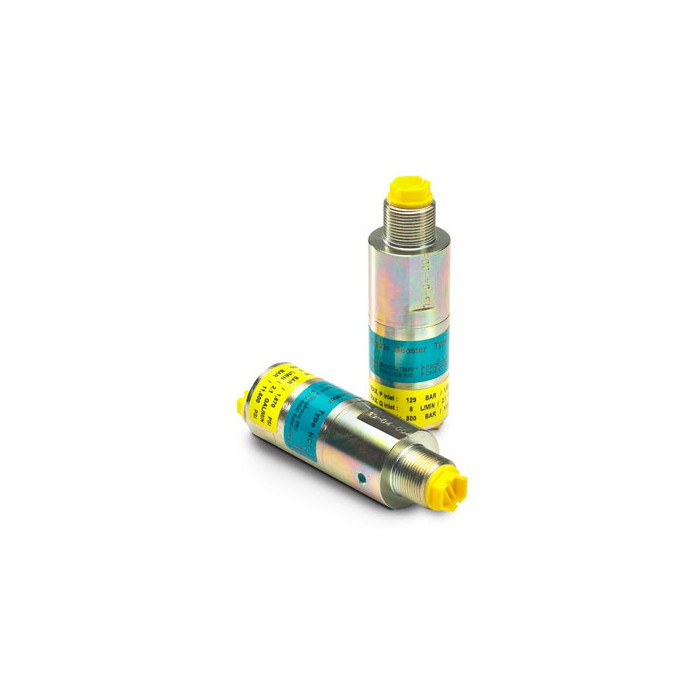

HC1 Series Booster
The HC1 is the most compact miniBOOSTER unit weighing only 0.7 kg. It is ideal for use in applications where it is desirable to mount the unit on or in a tool, power pack, or other device.
The HC1 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
HC1 versions: 9 different intensification factors
PIN: 20–207 bar (inlet pressure)
PH: 800 bar maximum (outlet pressure)
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PReturn) i (intensification)
Mounting: Inline tube
Accessories: Pilot-operated dump valve available
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled

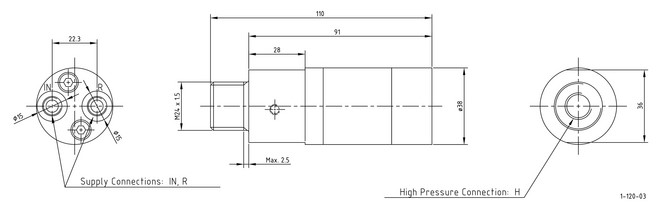

Dimensions
Functions
The basic operation is illustrated in the function diagram. Oil is fed through the directional valve CV to the IN port, flowing freely through the check valves KV1, KV2 and DV to the high-pressure side H. In this condition maximum flow through the booster is achieved, giving a fast-forward function.
When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

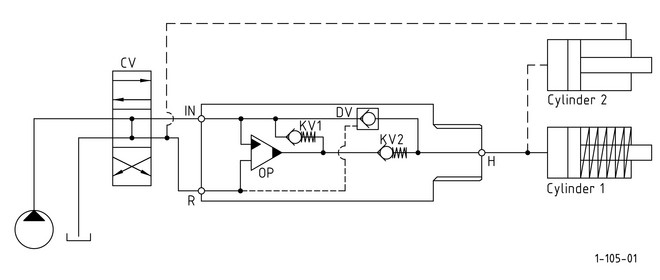

Function diagram
Intensifier Selection Note
Ordering these intensifiers requires a complete model code specification of pilot-operation valve and type of connection. (Refer to order table ) or you can refer to our specification table (Temporary Model Code) to send enquiry and our Sales department will assist you for the requirement need.
